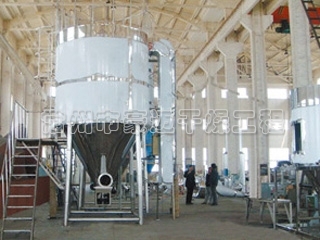

Principle:
The air passes through filtration and heating, then enters the air distributor at the top of the dryer, where the hot air spirals evenly into the drying chamber. The feed liquid is sprayed into extremely fine mist-like droplets by the high-speed centrifugal atomizer (rotating) at the top of the tower, flowing concurrently with the hot air, and can be dried into a finished product within a very short time. The finished product is continuously discharged from the bottom of the drying tower and the cyclone separator, while the exhaust gas is vented into the atmosphere by a fan.

Features:
● Fast drying speed: after the feed liquid is atomized, its surface area increases significantly. In the hot air flow, 95%-98% of the moisture can be evaporated instantly, and the drying process takes only a few seconds, making it especially suitable for drying heat-sensitive materials.
● The product exhibits excellent uniformity, flowability, and solubility, with high purity and superior quality.
● The production process is simplified, making operation and control convenient. For liquids with a moisture content of 40-60% (up to 90% for special materials), it can be dried into powder or granular products in a single step, eliminating the need for crushing and screening after drying. This reduces production steps and improves product purity. The particle size, bulk density, and moisture content of the product can be adjusted within a certain range by changing operating conditions, making control and management highly convenient.
