Principle:

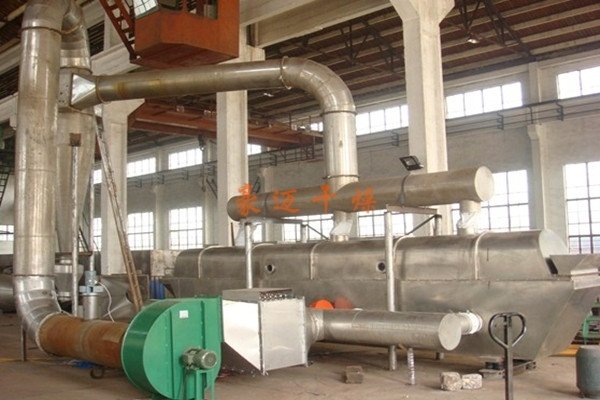

Materials enter the machine through the feed inlet. Under the action of vibration force, the materials are thrown forward in a continuous motion along the horizontal direction. Hot air passes upward through the fluidized bed to exchange heat with the wet materials. Afterward, the moist air is dedusted by a cyclone separator and then discharged through the exhaust outlet, while the dried materials are discharged through the discharge outlet.
Features:
● The vibration source is driven by a vibration motor, ensuring stable operation, easy maintenance, low noise, long service life, and convenient repair.
● High thermal efficiency, saving over 30% energy compared to ordinary drying equipment. Uniform bed temperature distribution with no localized overheating, even fluidization, and no dead zones.
● Good adjustability and wide adaptability. The material layer thickness, movement speed within the machine, and full amplitude variation can all be changed uniformly to achieve stepless adjustment.
● Minimal damage to the material surface, suitable for drying fragile materials; irregular material particles do not affect the working performance.
● The fully enclosed structure effectively prevents cross-contamination between materials and air, ensuring a clean working environment.
● When used for large-scale production of high-moisture materials, multiple units can be connected in series to meet user requirements (typical materials: such as polyacrylamide, etc.).
