I. Overview of Cadmium Stearate Flash Dryer, Cadmium Stearate Dryer, and Cadmium Stearate Drying Machine
The XSG cadmium stearate flash dryer is widely applicable for the dispersion and drying of granular, powdery, pasty, and filter cake-like pseudo-agglomerated materials in industries such as chemicals, pharmaceuticals, building materials, and food. It offers advantages such as a small footprint, low energy consumption, high thermal efficiency, and the capability for continuous large-scale production. The drying main unit is equipped with a rotary cutting device, which subjects the drying material to shearing, rotation, collision, and friction, thereby crushing and refining the material into a highly dispersed state, achieving efficient and rapid moisture evaporation.

The XSG cadmium stearate flash dryer is equipped with an air filter to ensure the cleanliness of the hot air, meeting the hygiene requirements of the food industry for production conditions. The machine is configured with a cyclone separator for material collection. Additionally, a bag filter dust collector has been added to improve material recovery rates, thereby enhancing the economic benefits of the enterprise.
The XSG cadmium stearate flash dryer can be equipped with a steam or coal-fired hot air stove as the drying heat source based on user needs or production requirements, thereby meeting the demands of different industries.
II. Structure and Working Principle of Cadmium Stearate Flash Dryer, Cadmium Stearate Dryer, and Cadmium Stearate Drying Machine
1. Product Structure

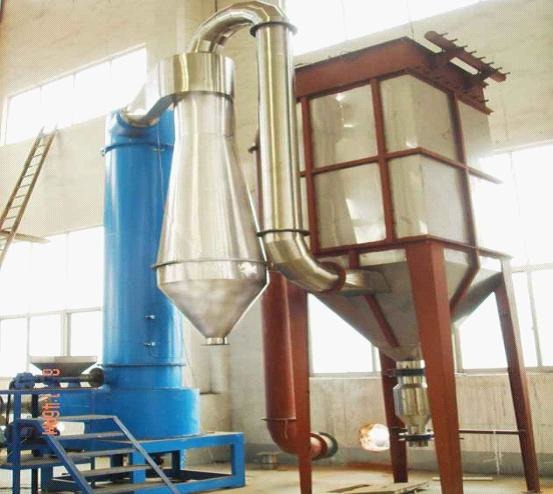

The XSG Rotary Flash Dryer (as shown in Figure 1) is composed of key components including the main drying unit, feeder, heat source device (hot air furnace or steam pipeline), air filter, blower, cyclone separator, bag filter, and induced draft fan. The main drying unit is equipped with a rotary cutting device, which cuts and crushes filter cake-like pseudo-agglomerated materials as well as large particles. As the rotary cutting device operates, the material to be dried is rotated into a powder-like state, accelerating the evaporation of moisture from the wet material and improving drying efficiency.
2. Working Principle
During the operation of the XSG rotary flash dryer, the material to be dried enters the drying chamber of the main drying unit through the feeder and rotates together with the rotating device. Filtered air is sent to the hot air furnace by the blower, and the hot air enters the drying chamber under the action of the induced draft fan to exchange heat with the wet material. The dried material passes through the classifier into the cyclone separator for collection. The dust-laden material is carried by the induced draft into the bag filter, where the dust is captured by the filter bags set in the dust collector. After pulse dust collection, the moist hot air is discharged out of the machine by the induced draft fan, thus completing the entire drying process.

III. Basic Parameters and Technical Specifications of Cadmium Stearate Flash Dryer, Cadmium Stearate Dryer, and Cadmium Stearate Drying Machine

Our company has a large number of experimental prototypes of dryers, mixers, granulators, and crushers. New and existing customers who are not familiar with the new equipment are welcome to bring materials to our company for free on-site testing. Customers in need are encouraged to call for inquiries.13706****** Manager Zhang

Based on customer requirements, promptly provide relevant technical documentation for the equipment to assist customers in preliminary selection and understanding of the equipment's performance. Support customers in conducting material testing, performance analysis, equipment finalization, and configuration selection during their visits to the factory. Carry out measurements and present drawings and documents such as equipment layout and foundation positioning to help customers prepare the groundwork for equipment installation upon arrival. Additionally, prepare quotations for the selected equipment.
