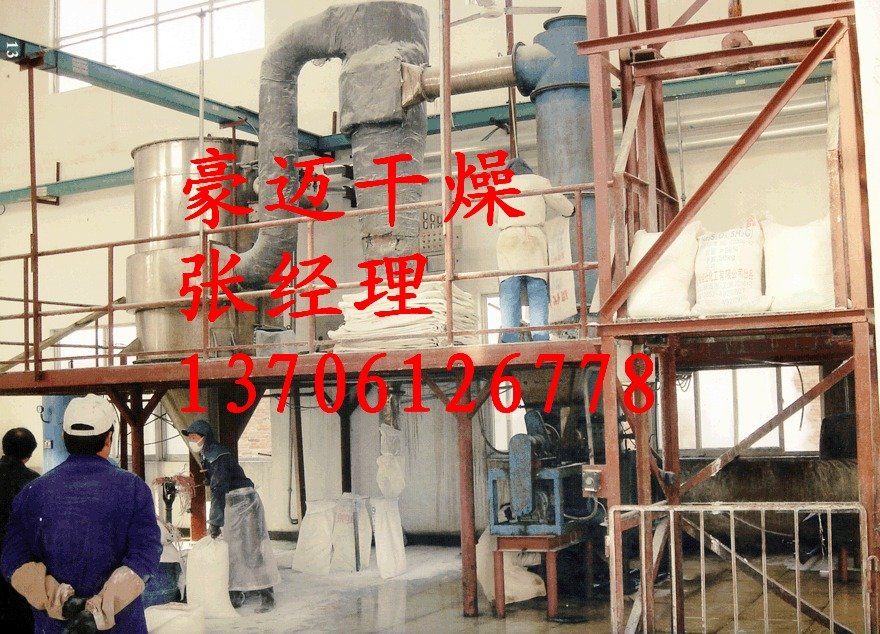

Component Catalog

Technical Requirements

1

Host

1. Cooling water flows through the cone base and the outer wall of the air duct. 2. The cooling water jacket is made of 304 stainless steel.

2

Observation port

Cone-shaped three-sided quick-opening observation port

3

Feed screw

1. Replace the lining shaft of the feed auger to prevent distortion.

4

Dust collector

1. The blowback pipe extends into the filter bag. 2. Top-open type. 3. Observation port added to the top cover.

4. Bag material and mesh count: The tendering party provides the powder material, and the bidding party is responsible for testing the mesh count, which is to be determined (**coating film, temperature resistance 160°C).

5

High-efficiency cyclone

1. Add observation port

Pipeline

2. Diameter after cyclone separation: 600mm

6

Three-way observation port

1. Install tee observation ports at each pipeline section (at least three). 2. Five observation ports with a diameter of 200.

The opening flange is required to protrude 20 cm above the main pipeline.

7

Electric heater

1. Equipped with distribution panel and meter 2. Can be combined with the original steam heating system of this factory

8

Blower

1. 304 stainless steel housing 2. Control panel 3. Maximize air pressure and airflow as much as possible

Preheating heater at the air inlet, made of 304 stainless steel

9

Induced draft fan

With control panel

10

**Rotary Valve** (also known as a **Rotary Airlock** or **Star Valve**)

Bearing External

11

Aggregate bin

Refer to the current material box used in the workshop, with a **circular** lower section for easy connection, thickness 3mm.

12

Flash Evaporation Control Panel

Site Operation Panel

13

Pipeline

The thickness of the pipeline from the air source to the dust collector is 2mm, and the material is all 304 stainless steel.
