Main Features:

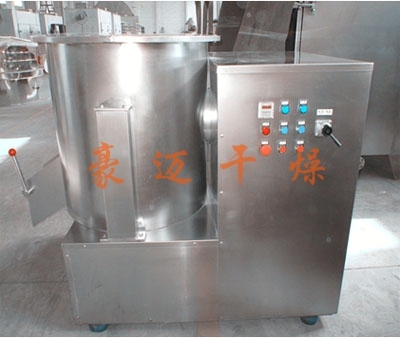

The ZGH vertical high-speed mixer is a high-efficiency mixer developed by our company by integrating advanced technologies from both domestic and international sources. Its main features are as follows.
1. Due to the centrifugal force, the bottom feeding blades continuously transport the bottom material upward along the cylinder wall, while the upper material falls back down through the center, causing the material to circulate in a vortex pattern.
2. The high-speed shredding impeller thoroughly breaks down the lump materials delivered by the feeding impeller.
3. Due to the high-speed rotation of the two types of blade pulps mentioned above, the materials can achieve uniform mixing within a relatively short period of time. The mixing speed and uniformity rate are unmatched by any other mixing machines in China. After mixing, there are no granular particles in the material, and the mixing uniformity speed reaches ****.
4. Open the discharge valve for fast material output and easy equipment cleaning.
5. All parts of the machine that come into contact with materials are made of stainless steel, ensuring no material volatilization, deterioration, or loss during the mixing process.
6. This machine is suitable for uniformly mixing dry and wet materials in different proportions, and is especially applicable for stirring various complex mixtures such as chicken essence, pharmaceutical granules, and beverage granules.
Working Principle:
The ZGH vertical high-speed mixer consists of a bottom feeding blade and a high-speed crushing blade. The feeding blade continuously transports the bottom material upward along the cylinder wall. The high-speed crushing blade thoroughly breaks down the material delivered by the feeding blade, causing the material to circulate in a vortex pattern, thereby achieving uniform mixing of the material in a relatively short period of time.
Related tags: chicken essence equipment, chicken essence production line, mixer

III. Technical Parameters:

1. Working Volume: 350L
2. Mixing weight: 150kg/batch (depending on the specific material)
3. Stirring power: 7.37KW
4. Host weight: 600kg
5. External dimensions: 1500×1090×1200 (mm)
