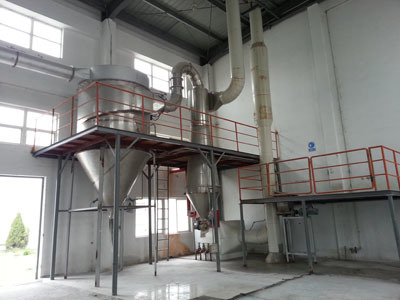

Technical Proposal for Sodium Erythorbate Airflow Drying, Changzhou Haomai Drying Engineering Co., Ltd. specializes in designing sodium erythorbate dryers.DifferentVC sodiumDrying equipment,DifferentVC sodiumPneumatic Dryer

Technical Consultation: 13706****** Manager Zhang

I'm sorry, but you've only provided a single Chinese character "理" without any context. Could you please provide the full text or sentence you'd like me to translate?

DifferentVCSodiumPulse Airflow Dryer

DifferentVCSodiumPulse pneumatic dryer is a type of pneumatic dryer. During the drying operation, the pipe diameter alternately narrows and expands, causing the airflow and particles to move at varying speeds. The relative velocity and heat transfer area between the airflow and particles are both relatively large, thereby enhancing the rates of heat and mass transfer. Additionally, in the expanded section of the pipe, the airflow velocity decreases significantly, which correspondingly increases the drying time.

DifferentVCSodiumAirflow Dryer - Mechanical Principle

WetDifferentVCSodiumThe material enters the dryer together with heated natural air via a conveyor, where the two are thoroughly mixed. Due to the large heat and mass transfer area, the purpose of evaporative drying is achieved within a very short time.

The dried product is discharged from the cyclone separator, while a small portion of the flying dust is recovered and reused by the cyclone dust collector or bag filter. The Q-type pneumatic dryer operates under negative pressure.DifferentVCSodiumWithout passing through the fan; the QG-type pneumatic dryer operates under positive pressure.DifferentVCSodiumThe fan has a crushing function; the FG-type pneumatic dryer is an exhaust gas recirculation type; the JG-type pneumatic dryer is an enhanced pneumatic dryer that integrates flash drying and pneumatic drying into one.

A fan with dispersing function is particularly suitable for the airflow drying of heat-sensitive materials. The high-speed rotating fan impeller can break up and disperse wet or even agglomerated materials, simultaneously stirring and mixing them during the dispersion process, after which the materials and hot airflow flow in parallel. This type of equipment is suitable for drying filter cakes or materials with surface moisture, where the moisture content is ≤40%. If the processing capacity is large or the final product requires a moisture content below 15%, a two-stage airflow drying system can be used. When the moisture content of the material exceeds 40%...

However, when it is ≤60%, feeding becomes more difficult. A mixer should be used to reduce the moisture content of the feed by mixing in dry materials. At this point, the total output of the drying equipment will decrease significantly, which is economically unviable.Therefore, users should first use mechanical methods (centrifugal dewatering or pressure filtration) to reduce the feed moisture as much as possible, ensuring the smooth progress of the drying operation.

Changzhou Haomai Drying provides precision manufacturing, [DifferentVC sodium[dryer]DifferentVC sodiumDrying equipment. Precision manufacturing,DifferentVC Sodium Airflow Dryer】,DifferentVC sodium airflowThe drying equipment is provided by Changzhou Haomai Drying. We are Changzhou Haomai Drying Engineering Co., Ltd. (http：//), located in Changzhou, Jiangsu, specializing in: dryers, drying equipment, mixers, crushers, granulators, screening equipment, hot air furnaces, etc.
