I. Product Introduction

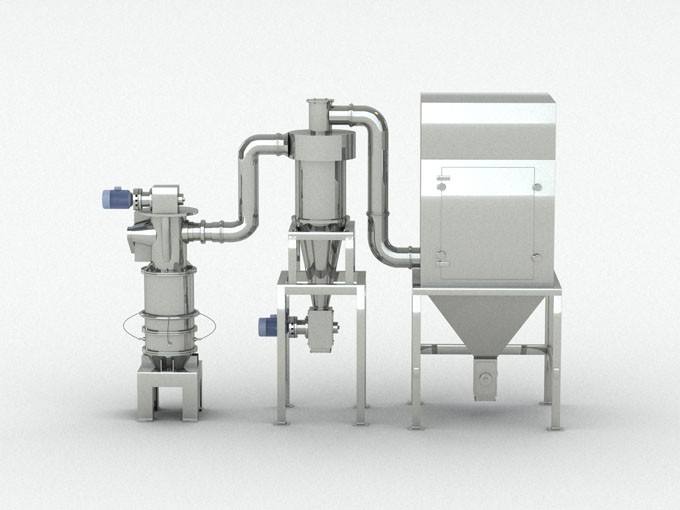

The jet mill, together with a cyclone separator, dust collector, and induced draft fan, forms a complete grinding system. After being filtered and dried, compressed air is injected at high speed into the grinding chamber through a Laval nozzle. At the intersection of multiple high-pressure air streams, the material is repeatedly crushed through collision, friction, and shearing. The crushed material moves upward with the airflow under the suction force of the fan to the classification zone. Under the strong centrifugal force generated by the high-speed rotating classification turbine, coarse and fine materials are separated. Fine particles meeting the size requirements pass through the classification wheel and are collected by the cyclone separator and dust collector, while coarse particles descend to the grinding zone for further crushing.

II. Product Features

1) The classifying wheel is made of ceramic, offering a long service life and no contamination of the powder.

2) Low-temperature medium-free crushing, especially suitable for crushing heat-sensitive, low-melting-point, sugar-containing, and volatile materials. ^[2] 。

3) The equipment is easy to disassemble, assemble, and clean, with a smooth inner wall and no dead corners.

4) The entire system operates with enclosed crushing, resulting in minimal dust and low noise, making the production process clean and environmentally friendly.

5) The control system adopts program control, making it easy to operate.

6) It contains a horizontal classification device, with precise apex cutting, adjustable product particle size, good particle shape, and narrow particle size distribution.
