Corn Vibrating ScreenIt is suitable for introducing advanced foreign technologies and, in combination with "GMP" requirements, has been meticulously designed and improved. It is widely applicable to industries such as pharmaceuticals, chemicals, food, metallurgy, and electronics, making it an ideal equipment for industrial raw material grading and screening.

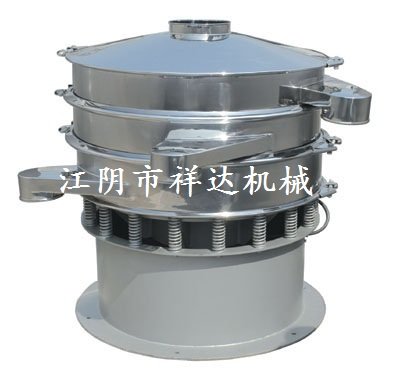

Corn Vibrating ScreenIt is composed of a vertical vibration motor as an integrated oscillation system, with eccentric excitation weights fixed at both the upper and lower ends of the motor's main shaft. These eccentric excitation weights are securely attached to the motor shaft and remain stationary. For materials that are difficult to screen, the weight of the eccentric blocks can be appropriately increased. This achieves the characteristic of screening different materials. At this point, the material is subjected not only to a significant centrifugal force but also to a substantial vertical force, resulting in a compound motion that produces an efficient screening effect.
Corn Vibrating ScreenFunction and Principle: The basic principle of the sieve and filter machine is that the heavy hammers (unbalanced weights) installed at the upper and lower ends of the motor convert the motor's motion into a three-dimensional movement involving horizontal, vertical, and inclined directions, which is then transmitted to the screen surface. By adjusting the phase angle of the upper and lower hammers of the motor, the direction of the material's movement can be altered.

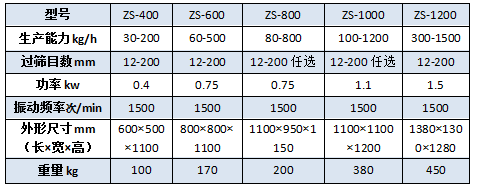

Corn Vibrating ScreenTechnical Parameters
