WFJ-(15) Micro Pulverizer Industrial Pulverizer 300 Mesh Ultra-fine Pulverizer High-speed Powder Location: Jiangyin City, Jiangsu Province -- WFJ-(15) Micro Pulverizer Industrial Pulverizer 300 Mesh Ultra-fine Pulverizer High-speed Powder -- 55,000.00

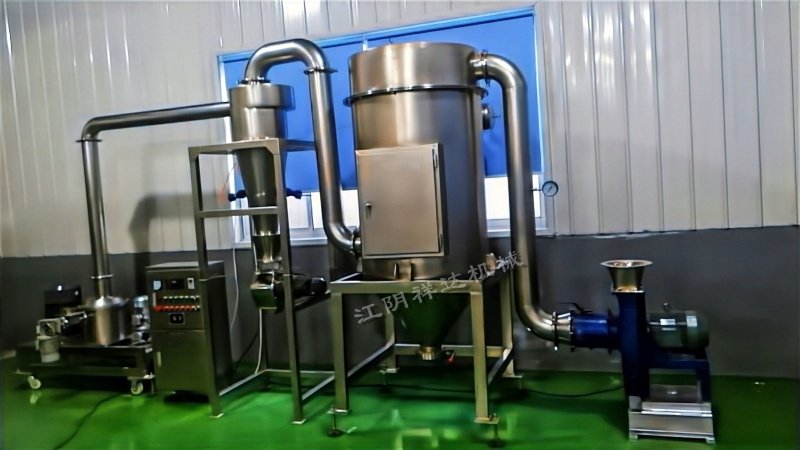

A large-scale pulverizer is a vertical-shaft impact-type micro-grinding machine capable of simultaneously completing two processing stages: micro-grinding and micro-powder classification. It consists of a body, frame, feeding device, crushing device, discharge pipe, transmission device, and motor, and is equipped with a main unit, dust collector, high-pressure centrifugal fan, airlock, cyclone collector, and electrical control system.

1. Grinding Particle Size: It is required that 96% of the ground particles pass through a 150-mesh sieve, meaning the particle size can be adjusted between 150 mesh and 300 mesh, and can also be adjusted between 80 mesh and 300 mesh as needed.

2. Feed particle size: <10mm;

3. Operating Status: The supplier must ensure that the machine can operate continuously without interruption due to prolonged runtime.
Output: When 96% of the crushed particles pass through a 150-mesh sieve, the output is no less than 800 kg/h; when the crushed particles pass through a 250-mesh sieve, the output is no less than 500 kg/h.

4. Material temperature: Keep the machine running continuously, with the discharge temperature <50°C.
5. Outlet micro-powder particle size: <450 mesh.

6. Equipment Material and Requirements: The main unit, material contact parts, and support frame shall all be made of SS304 stainless steel. Pipe wall thickness ≥ 1.5mm; cyclone separator discharge machine wall thickness ≥ 2.5mm; pulse bag filter wall thickness > 3mm. The crushing blade material shall be silicon alloy, with a material hardness of HRC60~62. The entire machine shall be manufactured in compliance with GMP requirements, with no welding slag or burrs on parts in contact with materials. All motors shall be encased in 304 stainless steel.Shell.

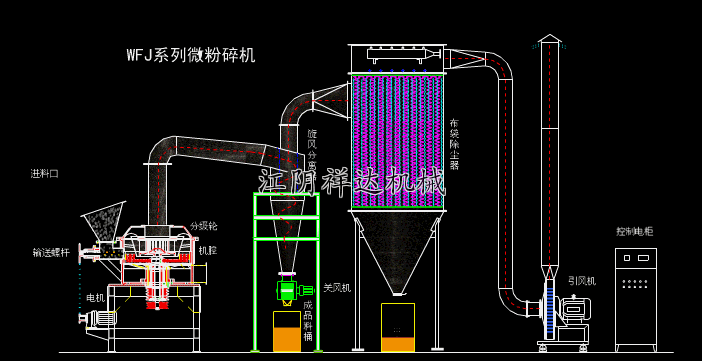

III. Structure and Working Principle:

It is a vertical-shaft reflection-type micro-pulverizer capable of simultaneously completing two processing steps: micro-pulverization and micro-powder classification. It consists of a body, frame, feeding device, crushing device, discharge pipe, transmission device, and motor, among others. The complete airflow turbine micro-powder unit is composed of the main machine, dust collector, high-pressure centrifugal fan, airlock, cyclone collector, and electric control cabinet. The particle size can be adjusted arbitrarily without stopping the machine. The product has uniform particle size, with fineness reaching 10-5 μm, and the machine features a self-cooling function.

(Example: Chemical industry. Traditional Chinese medicine. Root category. Stem category. Corn, rice, chili, pepper, lettuce, soybean, soybean meal, garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, garlic slices, white sugar. Saccharin. Grain category, dried shrimp, pumpkin powder, seasoning)
