Main uses

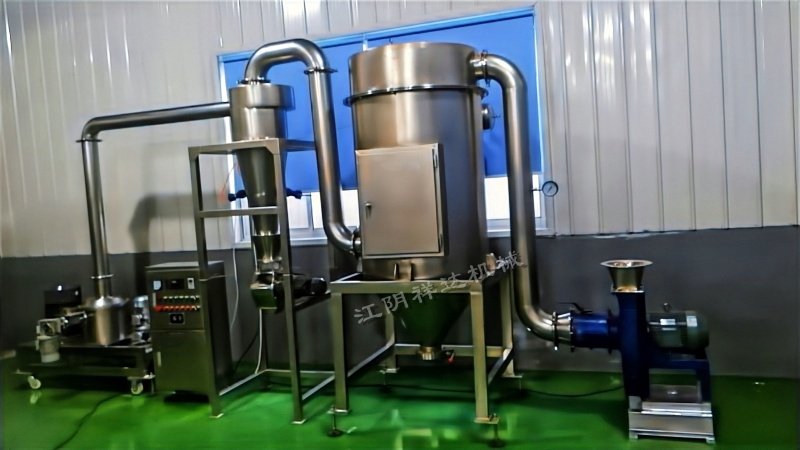

This machine consists of three parts: the main unit, the auxiliary unit, and the electric control box. It features a compact design and a reasonable structure, utilizing an air classification method without screens or meshes. The machine is equipped with a classification mechanism, enabling simultaneous crushing and classification. Negative pressure conveying ensures that the heat generated in the crushing chamber during operation is continuously discharged, making it suitable for crushing heat-sensitive materials as well. This machine has a wide range of applications, supports continuous production processes, and allows for adjustable discharge particle sizes. It can handle the crushing and classification of various materials, such as chemicals, food, pharmaceuticals, cosmetics, dyes, resins, and shells. This machine has reached the international advanced level.

Working principle

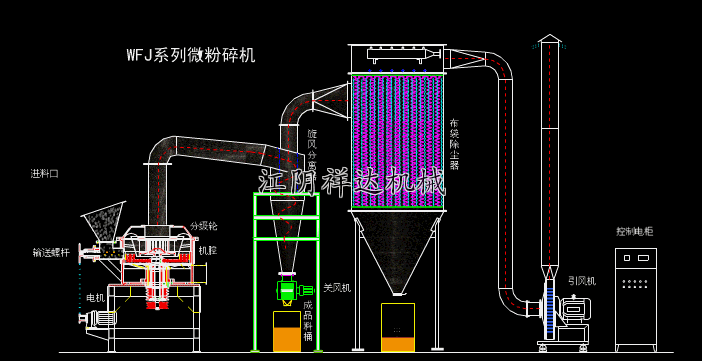

The material enters the crushing chamber from the feed gate via a screw conveyor, where it is cut and crushed by high-speed rotating blades. The material is then transported into a cyclone separator using negative pressure pneumatic conveying. The dust from the discharged material is filtered and recovered by a dust collection box through cloth bags or filter cartridges. During the production process, there is no dust dispersion, which improves material utilization and reduces enterprise costs.

Technical Parameters:
