Gastrodia elata ultrafine grinding vibration millApplication Scope: Ultra-fine grinding of non-metallic minerals; cell wall disruption processing of plants and traditional Chinese medicine; industries such as metal oxides, chemicals, and building materials.
●Ultra-fine grinding of minerals: kaolin, graphite, calcite, feldspar, quartz, barite, tremolite, talc, tourmaline, etc.
● Plant and Traditional Chinese Medicine Cell Wall Disruption Processing: Production of functional micropowders through cell wall disruption and pulverization of Lingzhi (Reishi), Cordyceps, Deer Antler, Antelope Horn, Centipede, Dehydrated Vegetables, Fruits, and Chinese Herbal Medicines.

Gastrodia elata ultrafine grinding vibration millMain Uses:
Gastrodia elata ultrafine grinding vibration millIt can effectively crush any fibrous, highly tough, highly hard, or moisture-containing materials, and is especially suitable for applications such as breaking cell walls of traditional Chinese medicine to enhance drug bioavailability, as well as for materials that cannot achieve the required fineness through conventional methods.
Gastrodia elata ultrafine grinding vibration millLow energy consumption, high efficiency: It is currently the **most efficient** micro-powder equipment, with the **highest** output-to-energy consumption ratio. It can be designed and manufactured in any configuration, ranging from 10 liters to 200 liters, with single, double, triple, quadruple, or multiple cylinders, and can operate in either continuous or batch production modes. Supported by air springs, the support stiffness can be adjusted as needed. The cylinder offers high stability, with a nearly circular grinding trajectory, high energy conversion efficiency, and low noise. Depending on the grinding material requirements, the grinding cylinder, lining plate, and grinding media can be made of different materials to ensure no contamination of the material. Additionally, variable frequency amplitude adjustment devices and cooling or heating systems can be configured based on material requirements.

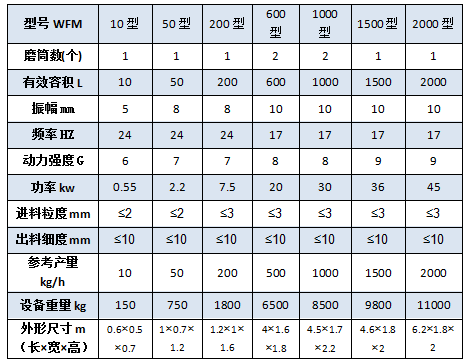

Gastrodia elata ultrafine grinding vibration millTechnical Parameters
