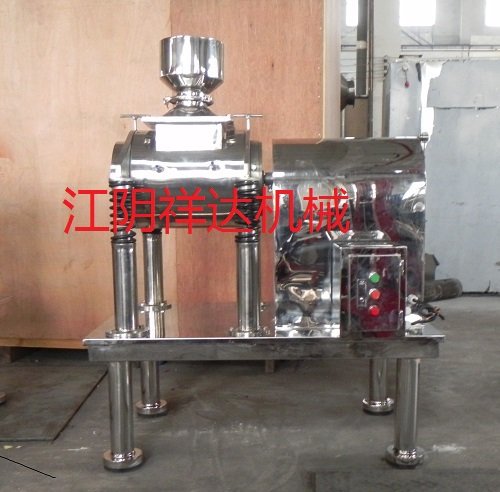

Centipede Ultrafine Crushing Vibration MillApplication Scope: Ultra-fine grinding of non-metallic minerals; cell wall disruption processing of plants and traditional Chinese medicine; industries such as metal oxides, chemicals, and building materials.
● Mineral ultra-fine grinding: KaolinSoil, graphite, calcite,Feldspar, quartz, barite, tremolite, talc, tourmaline, etc.
● Plant and Traditional Chinese Medicine Cell Wall Disruption Processing: Production of functional micropowders through cell wall disruption and pulverization of Lingzhi (Reishi), Cordyceps, Deer Antler, Antelope Horn, Centipede, Dehydrated Vegetables, Fruits, and Chinese Herbal Medicines.

Centipede Ultrafine Crushing Vibration MillMain Uses:
Centipede Ultrafine Crushing Vibration MillIt can effectively crush any fibrous, highly tough, highly hard, or moisture-containing materials, and is especially suitable for crushing requirements aimed at improving drug bioavailability, such as cell wall disruption of traditional Chinese medicine, as well as materials that cannot achieve the required fineness through conventional methods.
Low energy consumption, high efficiency: It is currently the most efficient micro-powder equipment, with the highest output-to-energy consumption ratio. It can be designed and manufactured in any configuration, ranging from 10 liters to 200 liters, with single, double, triple, quadruple, or multiple barrels, supporting both continuous and batch production. Supported by air springs, the support stiffness can be adjusted as needed. The barrel offers high stability, with a nearly circular grinding trajectory, high energy conversion efficiency, and low noise. Depending on the grinding material requirements, the grinding barrel, lining plates, and grinding media can be made of different materials to ensure no contamination of the material. Additionally, variable frequency amplitude adjustment devices and cooling or heating systems can be configured based on material requirements.

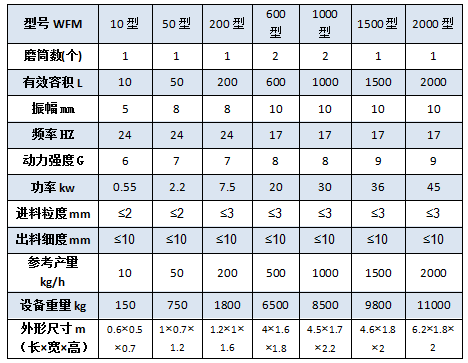

Centipede Ultrafine Crushing Vibration MillTechnical Parameters
