Pearl Ultrafine GrinderSuitable for ultra-fine grinding of low-hardness materials in food (corn, maltose, rice, ginger, chili, pepper, lettuce, soybean, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, onion, garlic, chives, carrot, soybean meal, plant fiber, starch, fish meal, flavors and fragrances, chitin, cabbage, grains, dried shrimp, seasonings, spices, ginseng, American ginseng, agricultural by-products, Chinese yam, prepared rehmannia root, spinach), pharmaceuticals, feed, calcium carbonate, Chinese herbal medicine, and other low-hardness materials.

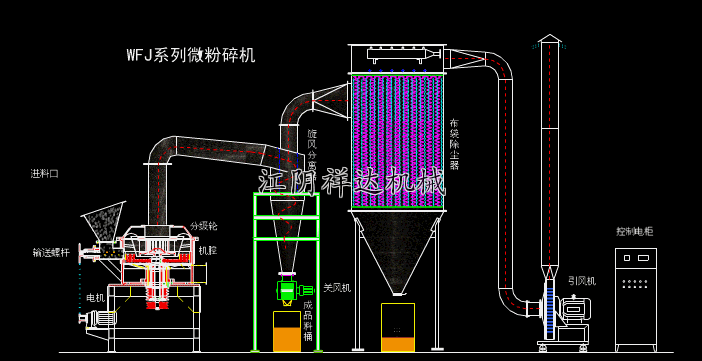

Pearl Ultrafine GrinderWorking Principle: The ultrafine pulverizer is a vertical-axis reflection-type micro-pulverizer capable of simultaneously completing two processing steps: micro-pulverization and micro-powder classification. It consists of a body, frame, feeding device, crushing device, discharge pipe, transmission device, and motor, among others. The complete set of airflow turbine micro-powder equipment is composed of the main machine, dust collector, high-pressure centrifugal fan, airlock, cyclone collector, and electric control cabinet. The particle size can be adjusted arbitrarily without stopping the machine. The product has uniform particle size, with fineness reaching 10-5um, and the machine features a self-cooling function.

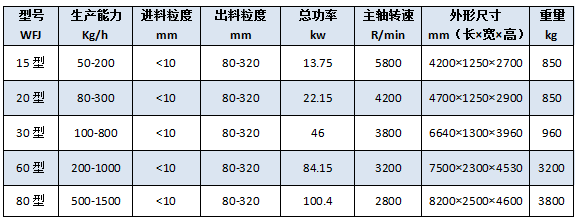

Pearl Ultrafine GrinderTechnical Parameters
