【Brief Introduction】

ZS-Oscillating Screen Working Principle: This machine consists of a hopper, an oscillation chamber, a coupling, and a motor. The oscillation chamber is equipped with an eccentric wheel, rubber components, a main shaft, and bearings. The adjustable eccentric counterweight is driven by the motor and transmitted to the centerline of the main shaft. Under an unbalanced state, centrifugal force is generated, forcing the material to change its trajectory and form a spiral vortex within the screen. The amplitude of the counterweight adjuster can be regulated based on different materials and screen meshes. The machine features a compact structure, small footprint, no dust emission, low noise, high output, low energy consumption, and easy mobility and maintenance.

【Detailed Explanation】

ZS - Vibrating ScreenMain usesSuitable for industries such as pharmaceuticals, chemicals, and food, it is an ideal equipment for continuous sieving and discharging of powders and coarse fine particles with varying proportions.
ZS - Vibrating ScreenWorking principleThis machine consists of a hopper, a vibrating chamber, a coupling, and a motor. The vibrating chamber contains an eccentric wheel, rubber components, a main shaft, and bearings. The adjustable eccentric weight is driven by the motor and transmitted to the centerline of the main shaft, generating centrifugal force under an unbalanced state. This force forces the material to change direction and form a spiral vortex within the screen. The amplitude of the weight adjuster can be adjusted according to different materials and screen meshes. The machine features a compact structure, small size, no dust emission, low noise, high output, low energy consumption, and easy movement and maintenance.

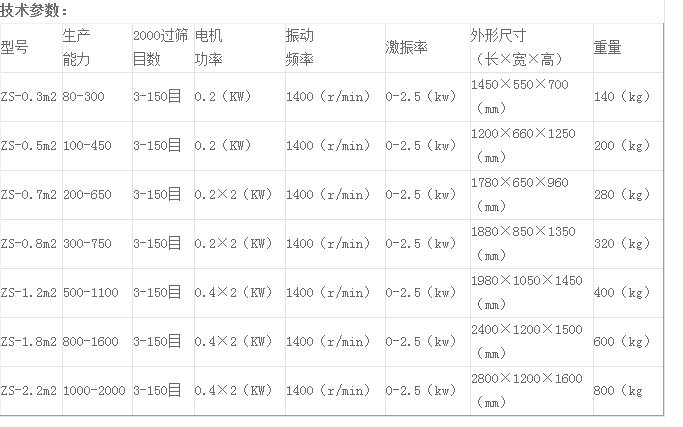

Technical Parameters:
