One,Introduction to Roller Jar Mill

Introduction-

A roller ball mill is a relatively critical piece of basic equipment in the powder grinding and mixing process. Its working principle involves a main shaft connected to a motor, pulley, and bearings for transmission. Relative motion occurs between the main shaft and the tank, generating friction with the surface of the ball mill tank to drive another passive shaft for rolling. The entire roller shaft is externally lined with a wear-resistant polyurethane sleeve to increase the friction coefficient and prevent deformation of the tank from slipping. Our company offers a complete range of roller ball mill varieties and specifications, organized into structured and comprehensive series. The main product series includeDry grinding ball mills, wet grinding ball mills, lined ball mills, grinding and screening ball mills, laboratory ball mills, various customized types, and more.

Application

It is widely used in the production industries of cement, silicate products, new building materials, refractory materials, materials chemistry laboratories, bio-fertilizers, non-ferrous metal beneficiation, as well as glass and ceramics, for dry or wet mixing of various ores and other grindable materials. It is also extensively applied in the grinding and mixing processes during the processing of electronics, ceramics, coatings, glass powder, fluorescent materials, non-metallic minerals, pharmaceuticals, electronic materials, magnetic materials, equipment batteries, biological cultivation, food packaging, and battery materials.

Mixed

It operates by moving along two rollers, generating regular motion of the grinding balls. The internal movement is uniform, preventing issues such as wall adhesion or sedimentation. ** Its advantage lies not in ultra-fine grinding, but in dry powder mixing, slurry mixing, and nano mixing. Among all machine types, the mixing effect of the roller ball mill is far superior to other ball milling equipment. In experimental data analysis reports, the powder curve it presents is narrower with a higher peak, allowing the material to exhibit greater stability in subsequent processes.。

II.Product Features

·This machine features variable frequency speed control, program control, and stepless speed regulation.

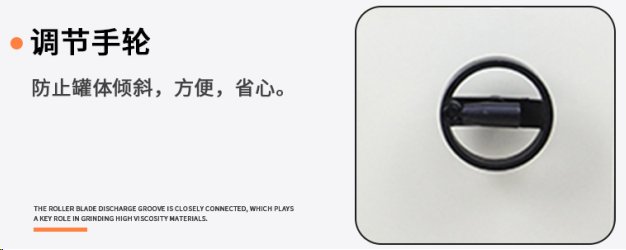

·The roller spacing is adjusted manually with a handwheel to prevent the tank body from deviating or shifting.

·The overall roller shaft is externally lined with a wear-resistant polyurethane sleeve, which increases the friction coefficient and prevents deformation of the tank body due to slipping.

·The feed particle size is less than3mm, soil allows within 10mm, discharge particle size 20-300 mesh or above (65-75μm)

III.Product Parameters

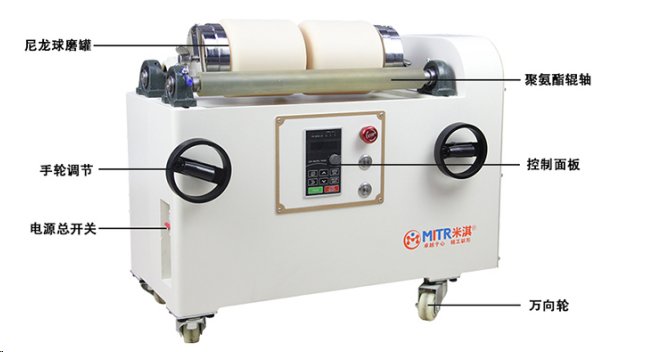

IV.Product Introduction

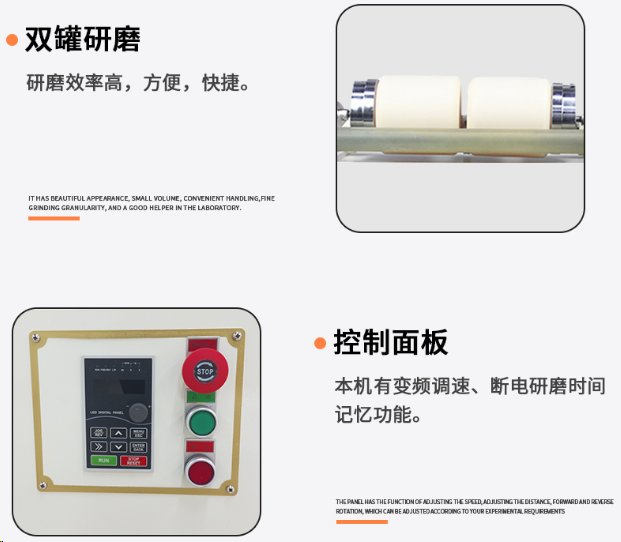

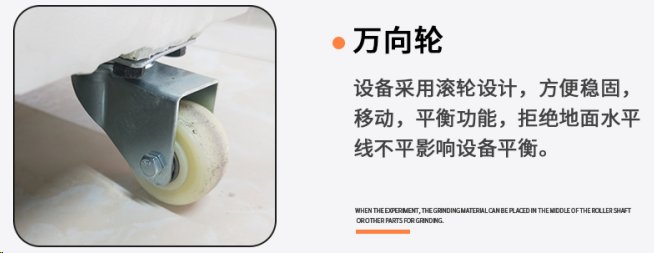

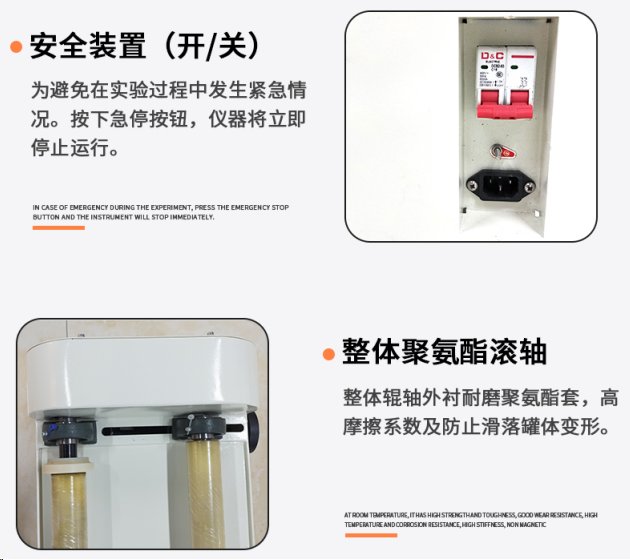

Five.Here is the English translation of "细节特点": **Detailed Features** / **Specific Characteristics**

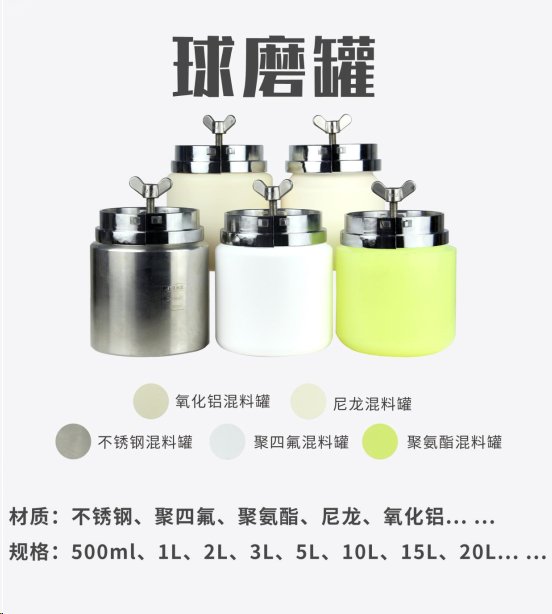

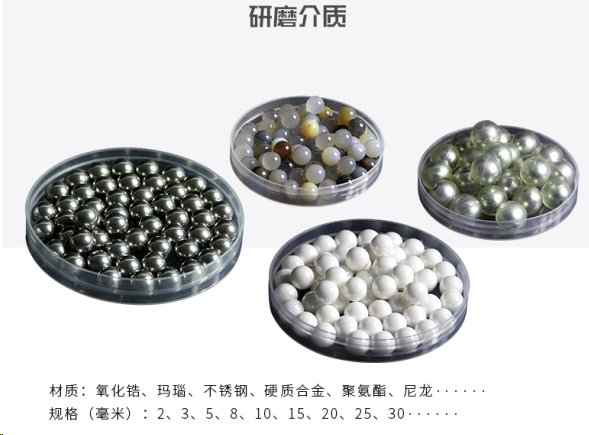

6.Ball mill jar and grinding media
