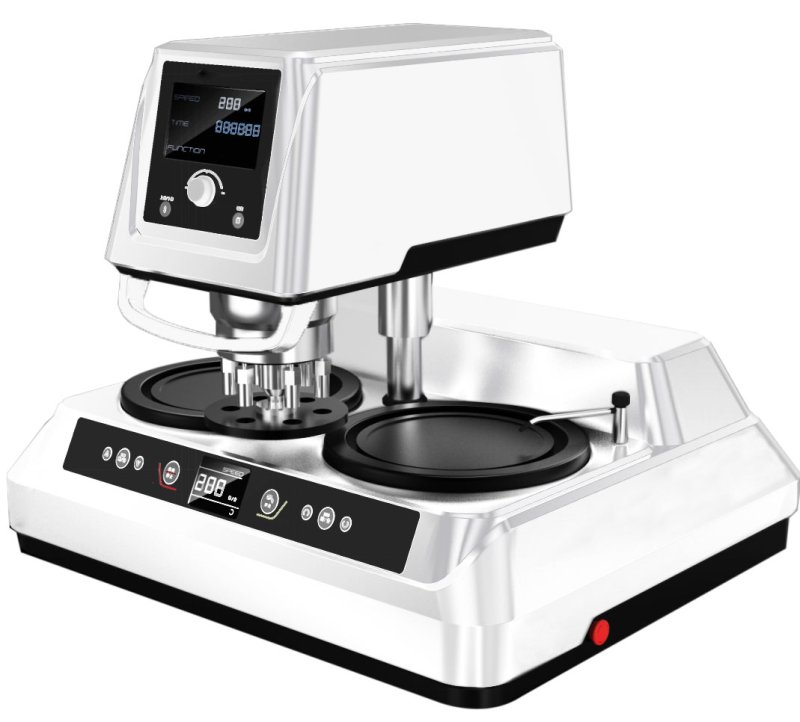

FMP-3000S Automatic Metallographic Sample Grinding and Polishing Machine

v Overview of the FMP-3000S Automatic Metallographic Grinding and Polishing Machine:

The FMP-3000S fully automatic metallographic sample grinding and polishing machine is a dual-disk benchtop model, manufactured using internationally advanced process technology. It is a new generation of high-precision grinding and polishing equipment with automated sample preparation. It is suitable for automatic sample preparation processes ranging from rough grinding, fine grinding, and rough polishing to fine polishing of metallographic samples. It is an ideal sample preparation device for laboratories in enterprises, research institutions, and universities.

Operating System:

It adopts an advanced microprocessor control system, enabling stepless speed regulation for the grinding and polishing disc and head, and making the sample preparation pressure and time settings intuitive and convenient.

Polishing System:

This machine only requires replacing the grinding/polishing disc, sandpaper, or fabric to complete the grinding and polishing processes. It features selectable rotation direction of the grinding/polishing disc, quick disc replacement, multi-sample holder, and pneumatic single-point loading functions.

Cooling system:

This machine is equipped with a water cooling device, which can cool the specimen during grinding and polishing to prevent damage to the metallographic structure caused by overheating, while also washing away abrasive particles in a timely manner.

v FMP-3000S Automatic Metallographic Grinding and Polishing Machine Parameter Table:

Note: "·"as standard configuration;"O"Optional accessory"

v Packing List for FMP-3000S Automatic Metallographic Grinding and Polishing Machine:

FMP-3000 Fully Automatic Metallographic Sample Grinding and Polishing Machine

Suitable for automatic sample preparation of metallographic specimens, covering the processes from rough grinding, fine grinding, rough polishing to fine polishing.Ideal device.

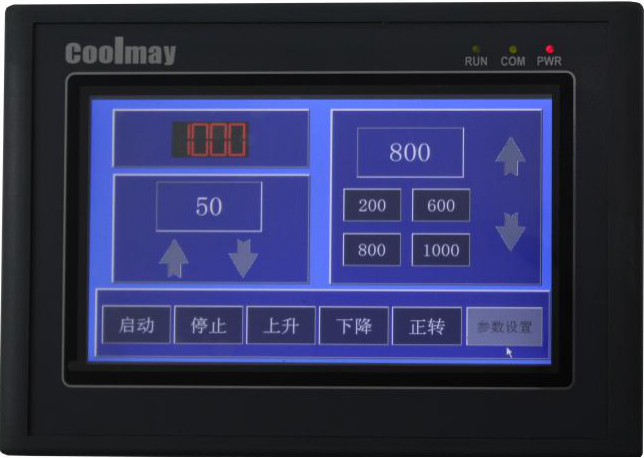

Operation panel

Touchscreen display operation, utilizing an advanced microprocessor control system, enables stepless speed regulation for both the grinding/polishing disc and head. The sample preparation pressure and time settings are intuitive and convenient, with overall machine start and stop control.
Grinding and Polishing System
Simply replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process. It features options for selecting the rotation direction of the grinding and polishing disc, quick replacement of the disc, as well as functions such as a multi-sample holder and pneumatic single-point loading.

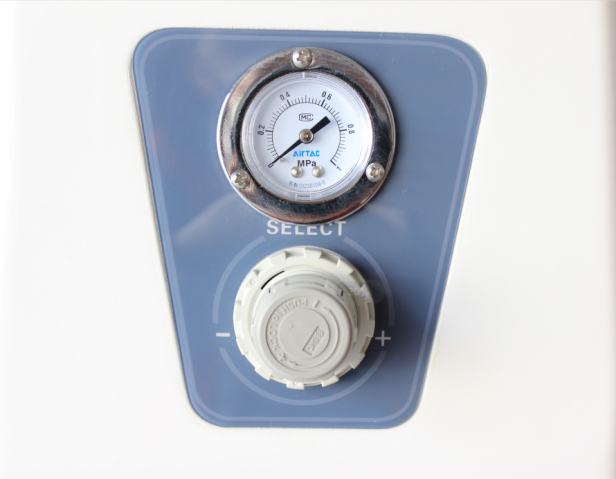

barometer
It contains mechanical and electrical controls and is an important part of the overall machine. It adjusts pressure control parameters and can generate pressure through the pressing head.0-0.7MpaPressure.
Cooling System
A water cooling device can cool the specimen during grinding and polishing to prevent damage to the metallographic structure caused by overheating, while also washing away abrasive particles in a timely manner.

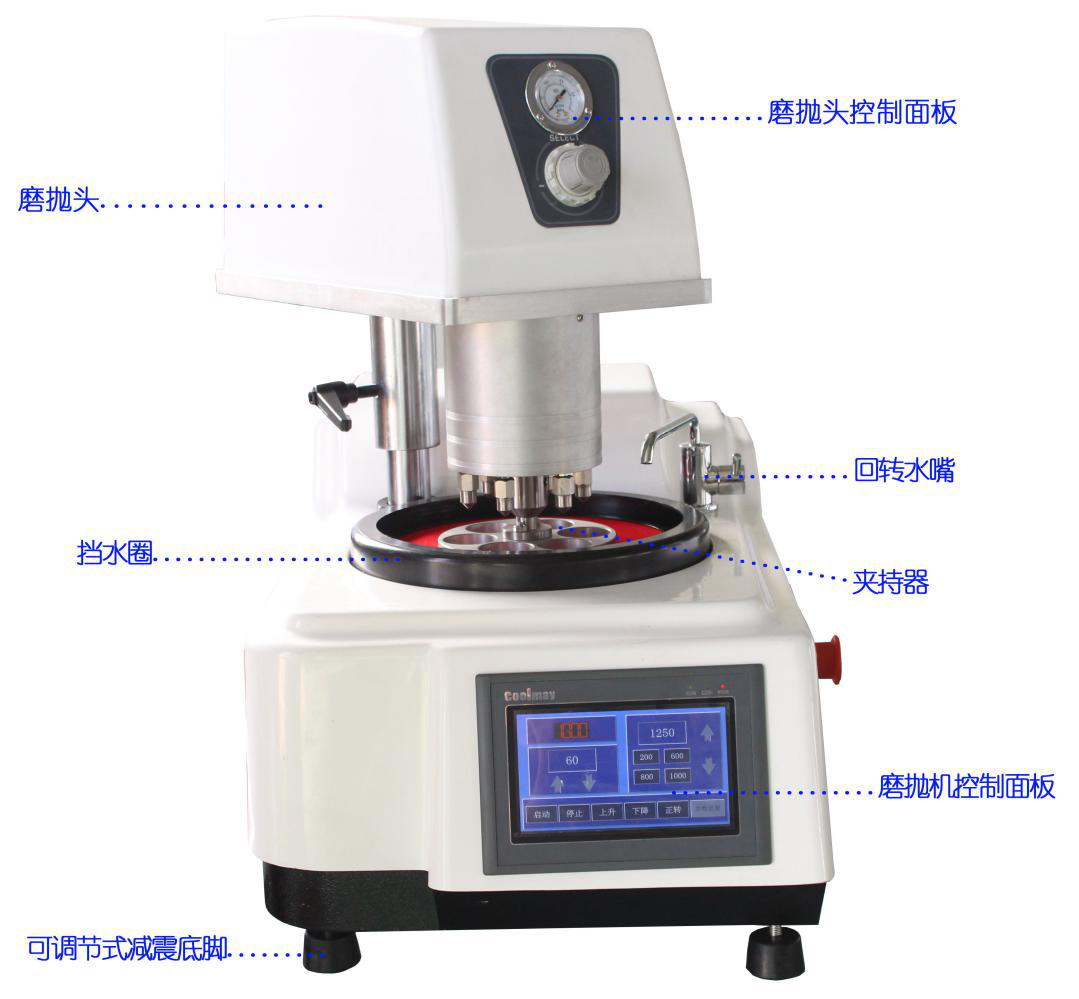

Brief Introduction to the Functions of Each Component:
Polishing Head: Contains mechanical and electrical controls, and is an important part of the overall machine.
Polishing Head Control Panel: Adjust pressure control parameters.

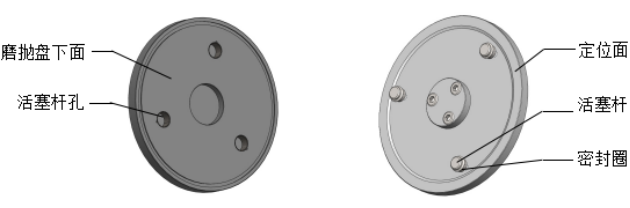

Grinding and Polishing Disc: Also known as the "working disc," it is a crucial component of the grinding and polishing process. It secures consumables such as sandpaper and flannel cloth to grind and polish the specimen.
Adjustable damping feet: for leveling and stabilizing the machine body.

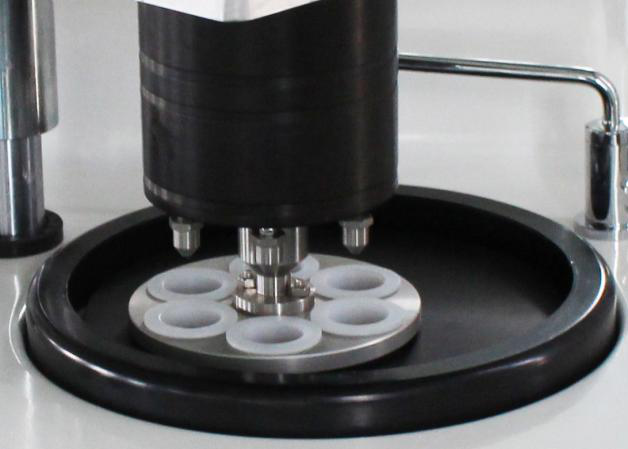

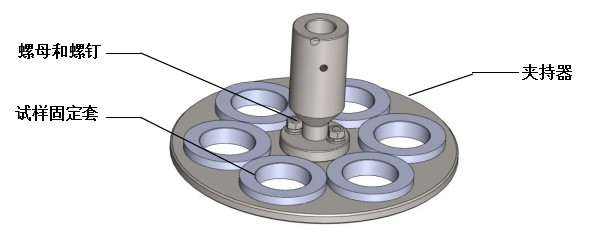

Holder: Used to secure the specimen, capable of generating force through the indenter.0-0.7MpaPressure.

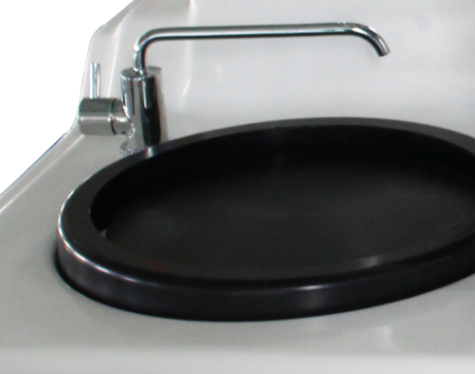

Rotating Water*: Can be used to rinse the specimen during grinding and polishing; can be turned on/off or rotated as needed.
Water Retaining Ring: Prevents water splashing during grinding and polishing.
Control Panel: Used to set the rotation speed, direction, and grinding/polishing time for the working disc; controls the start and stop of the entire machine.

Technical Specifications:

Structure ：Single-disk desktop structure

Grinding and polishing disc diameter: φ250mm

φ200mm or φ300mm (optional)

The rotation speed of the polishing disc. ：50-1000 r/min, stepless speed regulation

200r/min, 600r/min, 800r/min, 1000r/min (4-speed fixed)

Polishing head speed ：5-100 r/min (stepless speed regulation)

Milling disc rotation direction: Clockwise or counterclockwise

Loading range: 5-60 Newtons (N), single-point pneumatic pressure

Sampling time ：0-9999 seconds (S)

Sample diameter ：φ30mm*4 pieces

φ30mm*6 pieces or φ22mm*6 pieces or φ45mm*4 pieces

Input voltage ：Single-phase AC220V 50Hz

Input power ：870W

Overall Dimensions:430*710*745（mm）

Net weight: 98kg

Gross Weight ：122kg

**Component Diagram:**
