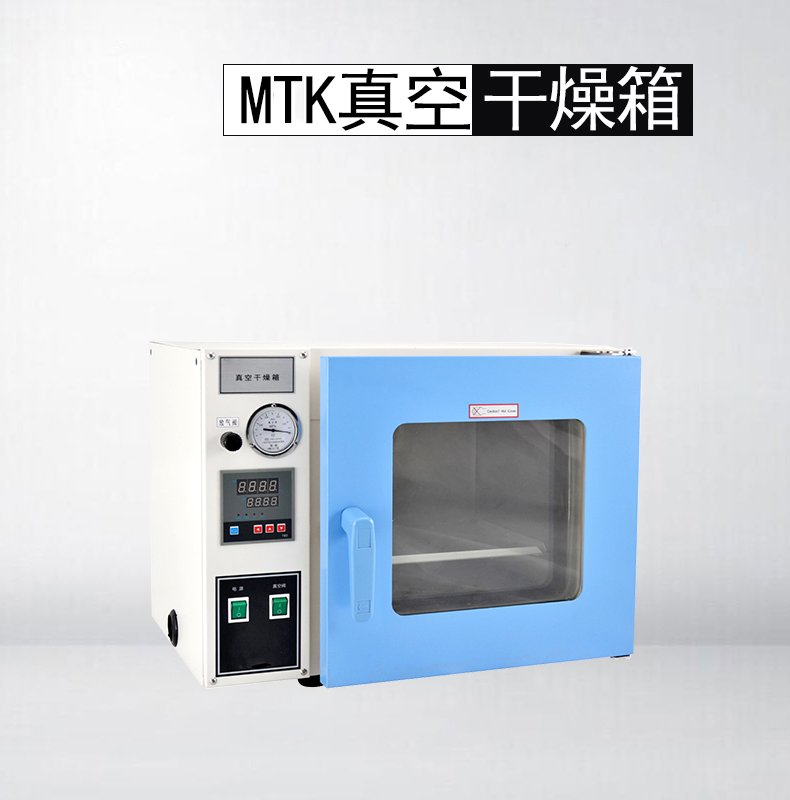

Product Features

● Microcomputer intelligent temperature controller, precise and reliable temperature control.
● Rectangular workspace to maximize the effective volume to the **limit**.
● The studio is made of high-quality cold-rolled or stainless steel plates, available for users to choose from.
● The tightness of the door closure can be adjusted, and the integrally molded silicone rubber door seal ensures
● High vacuum level inside the preservation chamber.
● The tempered bulletproof double-layer glass door provides a clear view of the objects inside the workspace.

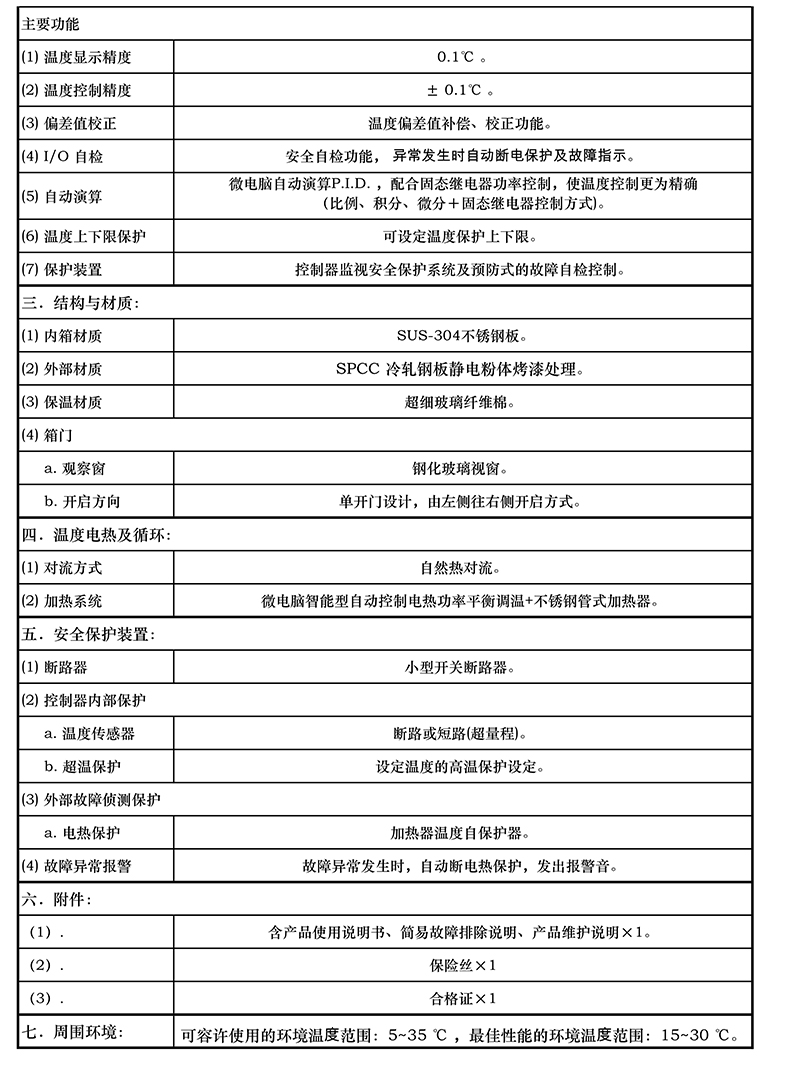

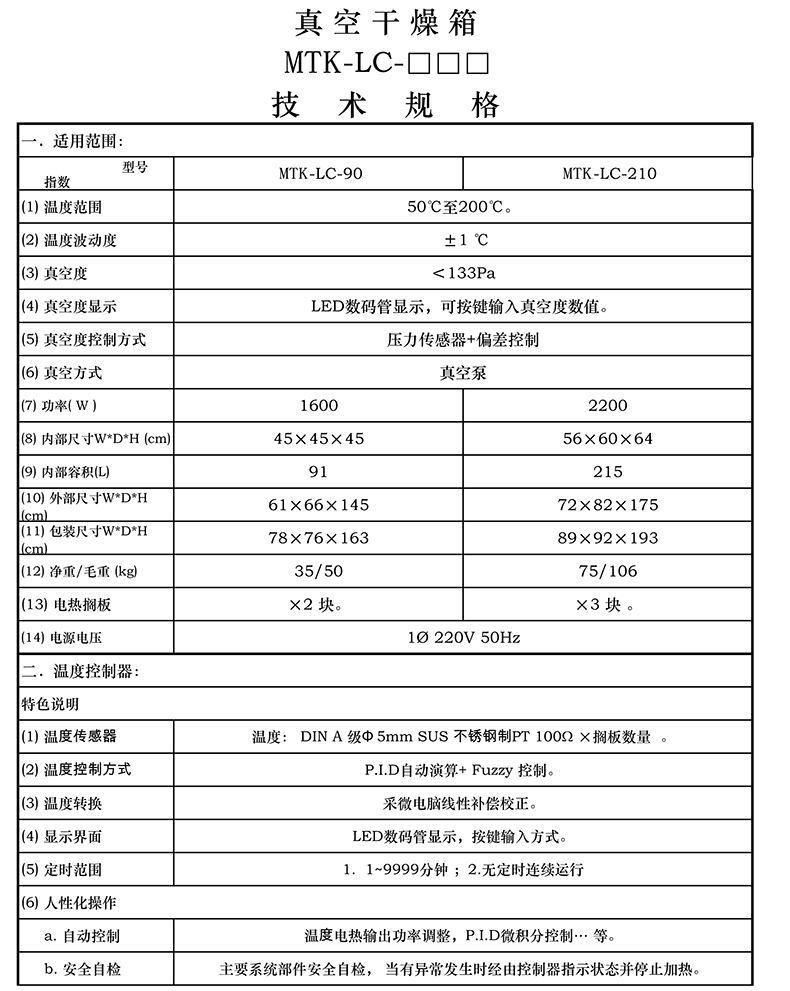

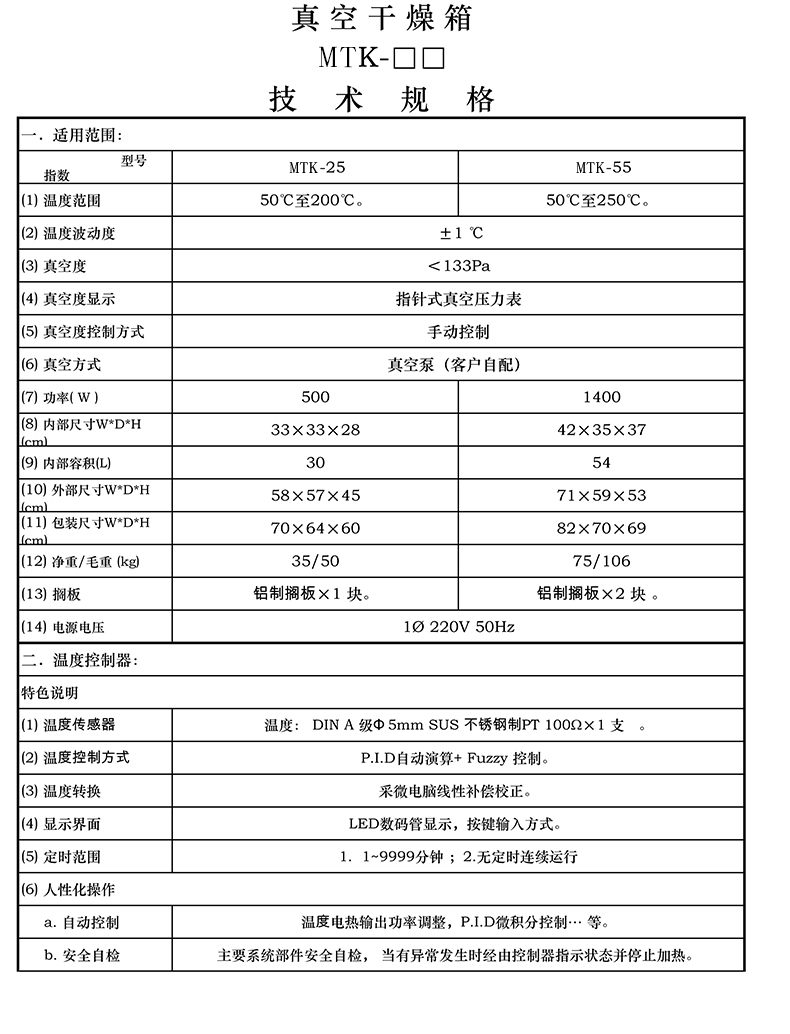

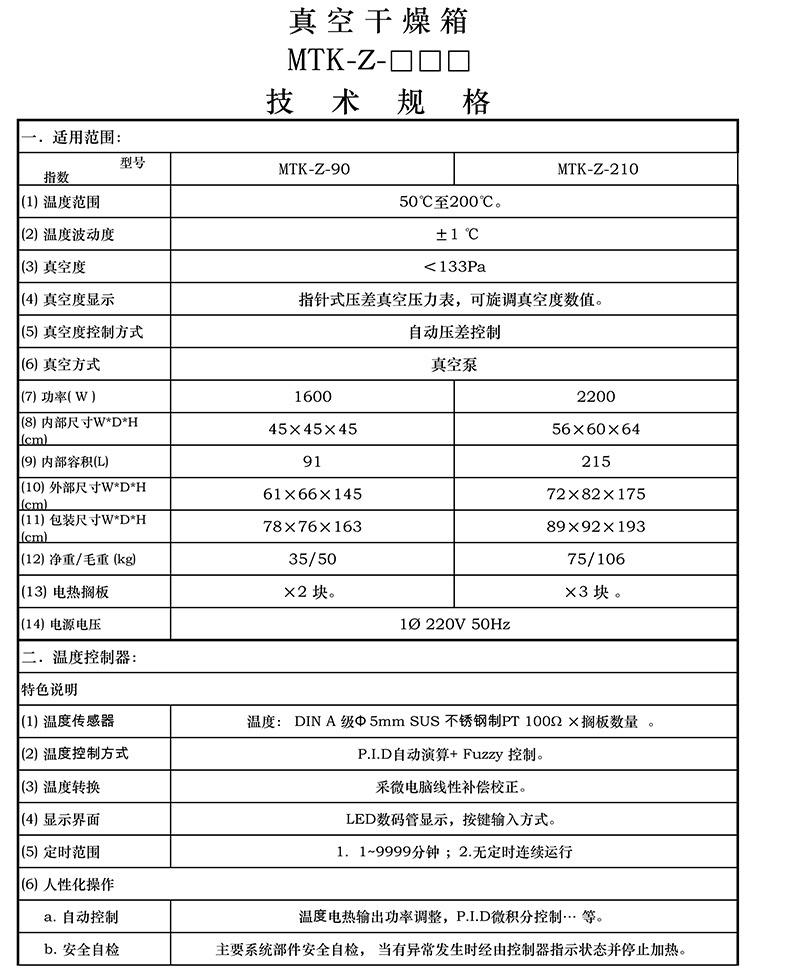

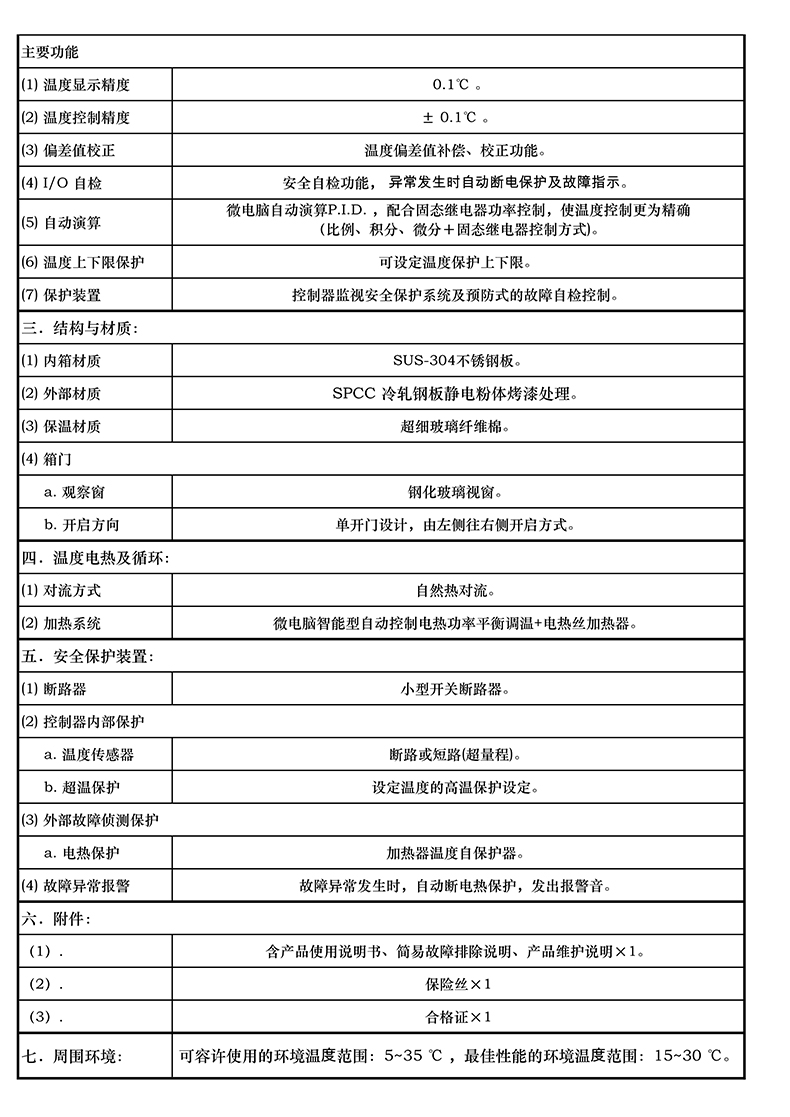

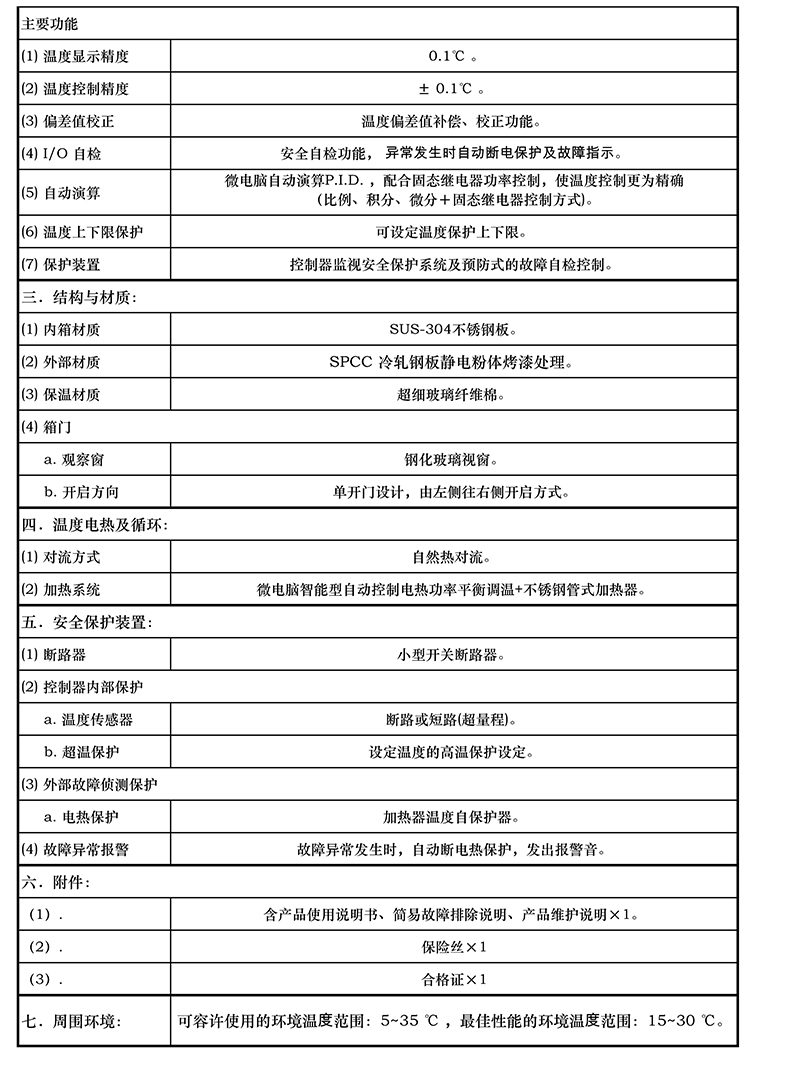

Technical Parameters

● Temperature control range: 50~200°C; (Model HZK-54: 50~250°C)
● Temperature fluctuation: ±1°C
● Vacuum degree: < 133 Pa

● Power supply: AC220V, 50Hz

Application Areas

This product is suitable for drying, heating, and other experiments on items under vacuum conditions in industrial and mining enterprises, medical colleges, and research institutions.

Note

1. Temperature range

MTK-25/MTK-Z-90/MTK-Z-210/MTK-LC90/MTK-LC210 Temperature range: 50℃-200℃

MTK-55 Temperature Range:50℃-250℃

2. Differences between MTK/MTK-Z/MTK-LC Vacuum Pressure Gauges

The MTK series is an analog vacuum pressure gauge.，Manual control.

The MTK-Z series is a pointer-type differential pressure vacuum gauge, featuring adjustable vacuum level settings and automatic differential pressure control.

The MTK-LC series features LED digital tube display, allowing keypad input of vacuum level values, with pressure sensor + deviation control.

3、Configuration of MTK/MTK-Z/MTK-LC Vacuum Pumps

MTK provides vacuum pumps for customer self-purchase.

MTK-Z/MTK-LC comes pre-equipped with a vacuum pump from the factory.

The MTK series does not come with a vacuum pump, while the MTK-Z is equipped with a vacuum pump.
