Through years of collaboration with various higher education institutions, research institutes, and corporate laboratories, we have gradually completed the entire process of designing, manufacturing, market testing, and mass-producing small-scale mixing test equipment. In response to the high-purity requirements of practical applications, we have established a comprehensive quality assurance and emergency response plan.

The cover plate, stirring main shaft, stirring rod, and grinding cylinder are all made of stainless steel or wear-resistant polyurethane. Grinding cylinder volume: 0.5, 1, 2, 3, 5L; Grinding cylinder rotation speed: 1400 or 2800 r/min or adjustable; Motor power: 250W-1250W; Feed particle size: less than 20mm. Discharge particle size: up to 1 micron. Suitable grinding media: glass, corundum, zirconium beads, steel beads, polyurethane, etc.

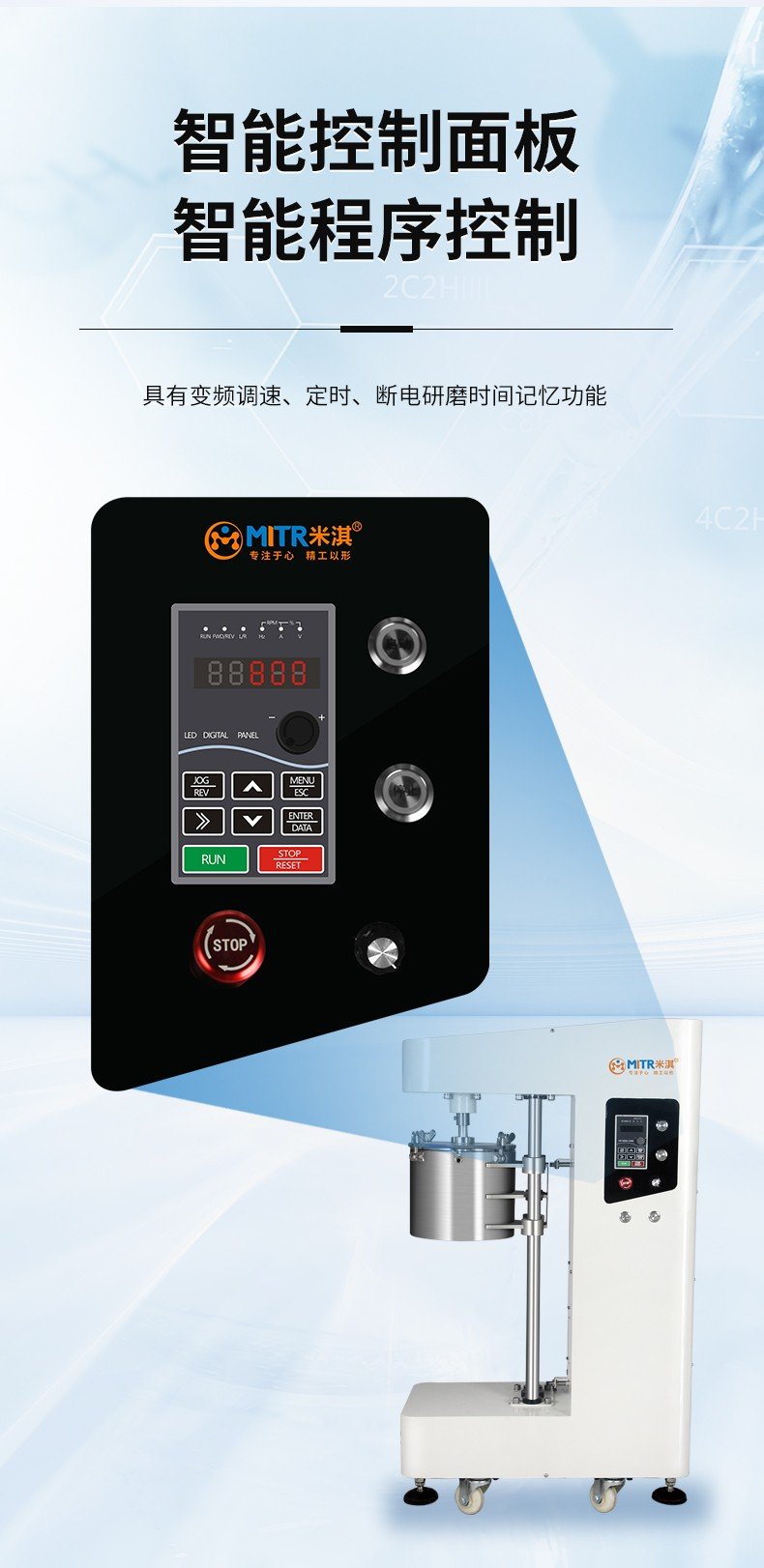

This machine features adjustable frequency conversion, timed grinding, and forward/reverse rotation, making it suitable for small-batch production and laboratory sample preparation.

This product is currently primarily used in the production fields of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long-afterglow luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, ceramic capacitors, zinc oxide varistors, piezoelectric ceramics, nanomaterials, disc ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, arrester valve plates, strontium titanate ring varistors, ceramic filters, dielectric ceramics, piezoelectric transducers, piezoelectric transformers, chip resistors, thick film circuits, carbon film potentiometers, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powders, cobalt oxide powders, Ni-Zn ferrites, Mn-Zn ferrites, and other products. It covers nearly 60% of electronic component manufacturers in China.
