Lithium iron phosphate is a type of cathode material for lithium batteries. Therefore, the lithium iron phosphate jet mill and classifier produced by Sichuan Juzi is also a specialized mill for lithium battery cathode materials, belonging to the category of fluidized bed jet mills and classifiers. There are four models available for selection. For detailed parameter information, please refer to the bottom of the page.

Material Introduction

Lithium iron phosphate electrode materials are primarily used as cathode materials in lithium-ion batteries for mobile phones, laptops, and other portable electronic devices.The lithium iron phosphate industry aligns with the direction of national industrial policies. Countries around the world have placed the development of energy storage batteries and power batteries at the level of national strategy, providing substantial funding and policy support. China is also highly supportive in this regard. In the past, attention was focused on nickel-metal hydride batteries, but now the focus has shifted more toward lithium iron phosphate batteries.

Lithium iron phosphate batteries, as a novel type of lithium battery, represent the future direction of battery development. They are the most ideal power batteries ever invented. Although there are currently some technical and pricing drawbacks, they have already embarked on the path of commercialization. Industry experts generally believe that lithium iron phosphate technology will not become an obstacle to industrial development (with precedents such as the mature technologies of A123, Valence, and Phostech), and prices will significantly decrease as production capacity expands, potentially making them the most cost-effective power batteries in the future. Therefore, domestic lithium iron phosphate batteries have vast market potential, presenting a rare opportunity for the rapid advancement of lithium-ion batteries. Despite numerous challenges in development, it is believed that through the joint efforts of various enterprises in the near future, the long-term growth of China's battery industry will be greatly promoted.

Equipment Features

As a raw material for lithium batteries, the production of lithium iron phosphate relies on crushing and classifying machines to grind it to a sufficient fineness, classify powders of different particle sizes, and enable efficient utilization and high-quality production of lithium-ion batteries. The lithium iron phosphate jet mill classifier has three notable features:

1. This model is a fluidized bed multi-stage jet mill, utilizing the principle of jet milling to ensure 100% product purity.
2. A two-stage classification structure is adopted to ensure a concentrated powder particle size distribution and a high tap density of the finished product.
3. Unique decentralized design reduces over-crushing of raw materials, **maximizing the yield rate.

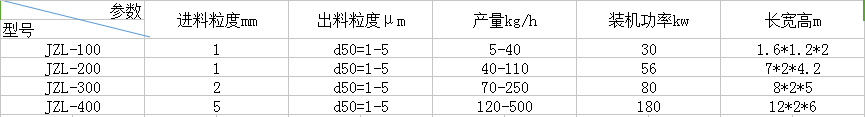

Main Technical Parameters

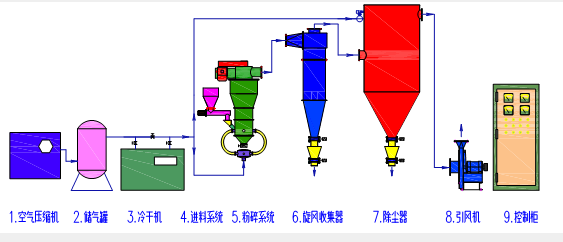

Process Flow Diagram

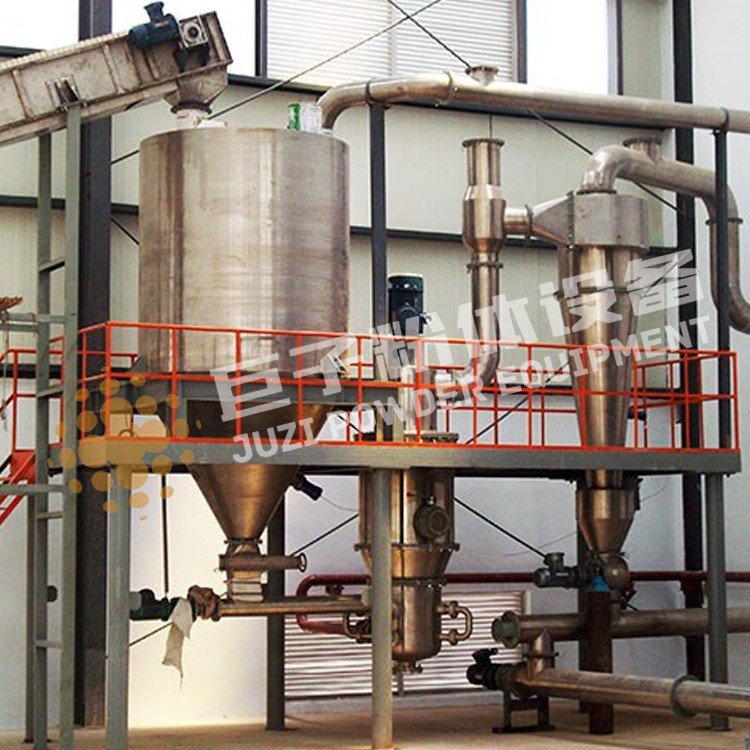

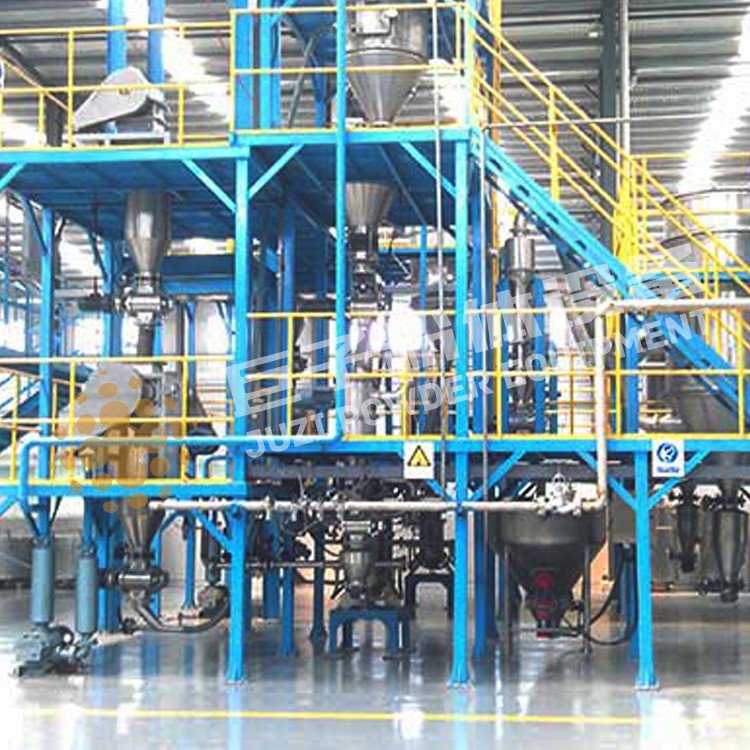

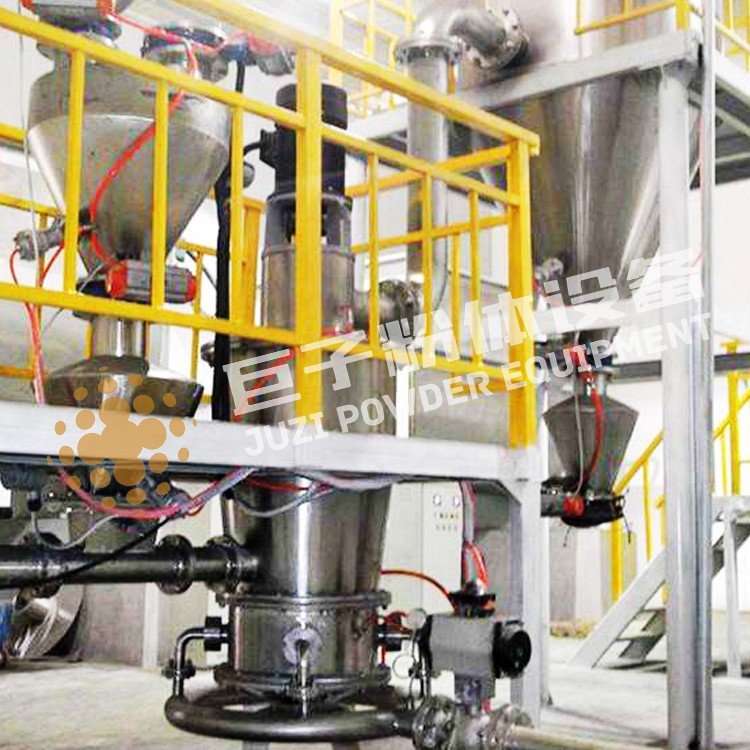

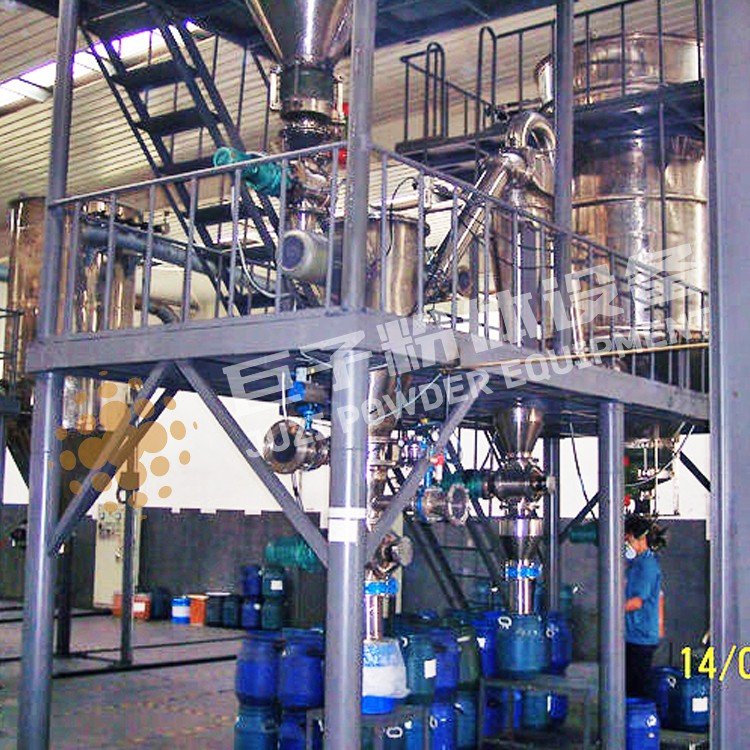

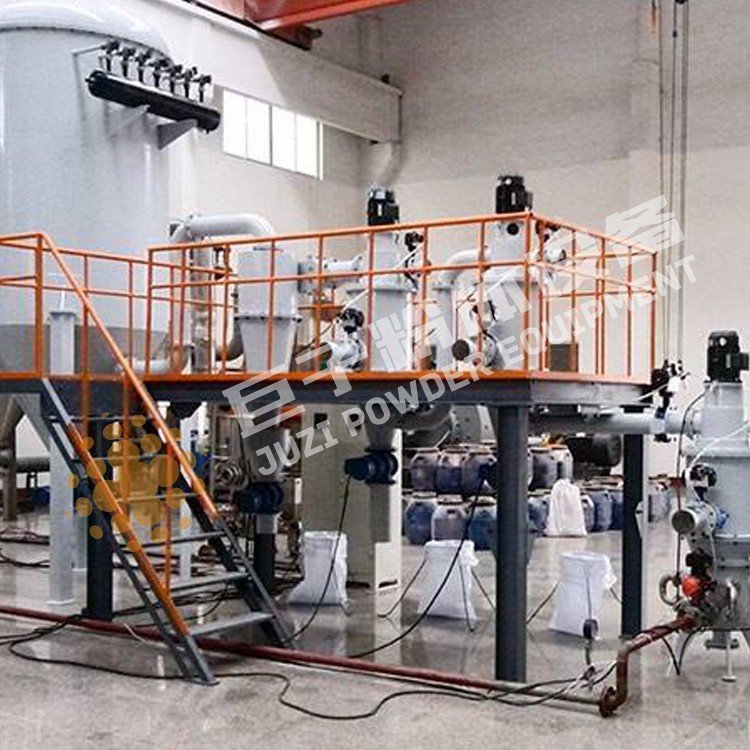

Equipment Display Diagram
