In uncoated compressed tablets, while ensuring sufficient disintegration within the digestive tract, it is also necessary to maintain physical strength during the preceding manufacturing, packaging, and transportation processes to prevent damage or significant loss due to collisions or friction.
The method for testing the abrasion resistance of tablets to determine their physical strength is specified in the Japanese Pharmacopoeia
In actual wear testing, in addition to precisely controlling the rotation speed and drop count of the tester, the operator is also required to perform accurate operations such as measuring and observing the tablet samples.
The tablet abrasion tester TFT-130 is not only suitable for local authorities but also easy to load samples. With features such as discharge and a highly intuitive, easy-to-read operation panel, it is a tester that enables smooth test operations.
Additionally, domestically（※１） The PC software "Di-LINQ TFT"（※２） Through the connection, test operations can be navigated, enabling the digitization of all data required for testing and the output of reports.
Compliant with JP, USP, and EP.
This product not only allows you to set the rotation speed based on the number of drops specified in pharmacopoeias and other standards, but also enables you to set arbitrary test conditions. By raising and lowering the bottom bracket of the main body, it is effective in cases where rotation and falling are irregular due to the size or shape of the specimen.（※３） It is believed that the device is tested at a 10° tilt. This product is an extension shaft.（※２） In this way, the two drums are installed in a stacked configuration. Two tests can be conducted simultaneously, improving testing efficiency. After the experiment, gently rotate the drum to allow the sample to automatically discharge into the test tube. With easy-to-understand button configurations and LED displays that align with test operations, intuitive operation and clear status confirmation at a glance are achieved. You can register commonly used test conditions, such as quality management tests, in the memory button to quickly apply the settings. The drum of this product is domestically manufactured using **integral molding with an anti-static agent**. Unlike conventional surface coating methods, it provides **semi**-permanent anti-static effects. As a result, it significantly reduces issues such as adhesion of sample wear powder, obstruction of falling within the drum, and tight contact between drums. Recently, the importance of ensuring reliability in quality testing of pharmaceuticals and health foods has been increasing.CharacteristicsSpecialty
The number of drops and rotation speed can be set arbitrarily.

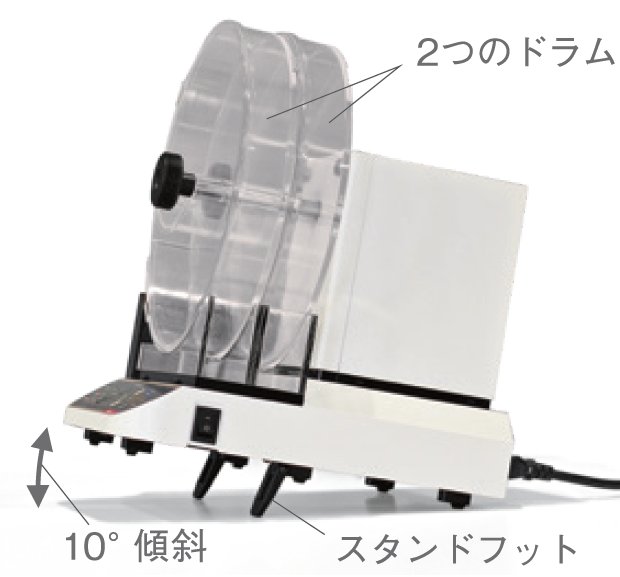

It can not only manage the quality of pharmaceuticals but also be utilized in a wide range of applications, such as research in formulation development and testing in health foods.Test for handling a 10° tilt
Supports simultaneous testing of two drums.
Automatic discharge of the sample material

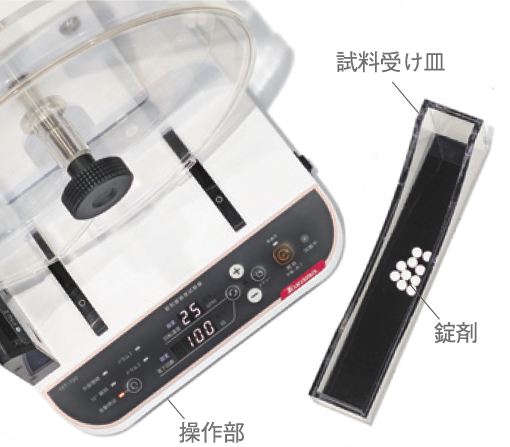

The sample receiver with a black bottom offers high visibility, enabling smooth post-test operations.A hygienic and easy-to-use operation interface and notification function
The operating section, designed with an integrated seat, allows for hygienic operation while wearing gloves in cleanrooms and similar environments.
Before the test, notify the status of the drum, sample tray, device tilt, etc., to prevent operational errors. During the test, display the current rotation speed and remaining drop count, and notify via buzzer and display when the test ends.One-click setting through the memory button.
Half **the anti-static effect,**（※１） One-piece molded drum
Additionally, on the side of the drum, there is a sample discharge and loading port, allowing the pre-measured test sample to be smoothly slid in without removing the drum, enabling the test to start quickly.
All rollers are managed with serialization, and their dimensions are checked to ensure compliance with standards before shipment.（※４）

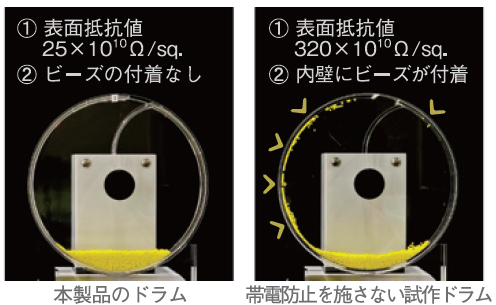

[Verification of Antistatic Effect]
① Use a surface resistance meter (SIMCO ST-4) to measure the surface resistance of the roller. (The smaller this value, the less likely it is to become charged.)
Place expanded polystyrene beads (yellow) with a diameter of approximately 3mm into the drum, rotate at 25 rpm for 100 revolutions, then stop and observe.

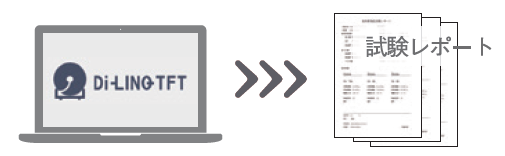

The first in China（※１） Supports creating test reports via PC connection.
PC software "Di-LINQ TFT"（※２） By connecting to this product, it is possible to navigate the operator's actions along the process, make pass/fail judgments based on the measured values of the specimen before and after testing, and generate test reports.
This report electronically records all data required for wear testing, including the test date and time, as well as the tester's account. It eliminates the risk of human recording errors, ensuring highly reliable testing.
