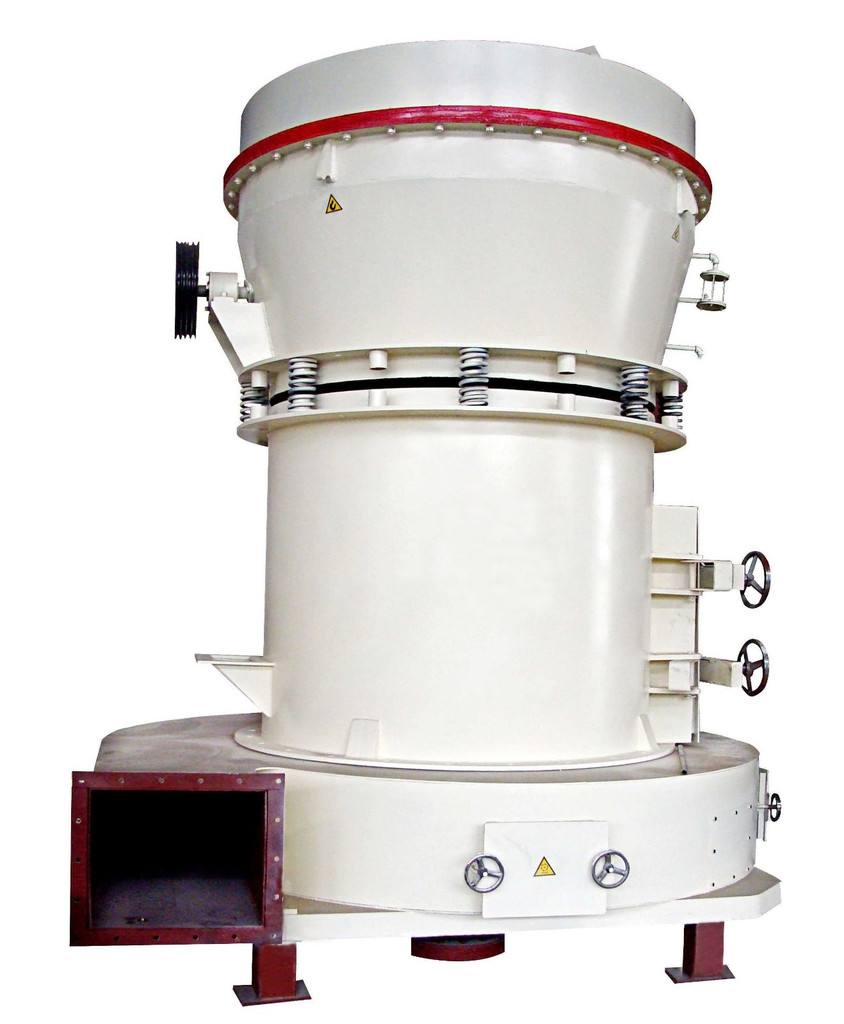

**Product Introduction:**
Currently, Raymond mills are widely used in China. They are high-efficiency closed-circuit fine powder grinding equipment suitable for small and medium-sized mines, chemical industry, building materials, metallurgy, refractory materials, pharmaceuticals, cement, and other industries. As a new type of grinding machine that replaces ball mills for powder processing, this equipment offers higher efficiency, lower power consumption, smaller footprint, and lower initial investment compared to ball mills.
Working Principle of Raymond Mill: The Raymond mill is a type of pendulum roller mill. Several grinding rollers of the mill are suspended on a central frame. The centrifugal force generated by the high-speed rotation of the pendulum rollers, combined with the force transmitted to the rollers by the spring pressure frame, creates grinding pressure between the rollers and the grinding ring. Material is shoveled by the scraper and fed between the rollers and the grinding ring. Under the grinding pressure, the material is crushed into powder. Subsequently, under the action of the fan, the powdered material is blown up and passes through the classifier for separation. Material that meets the fineness requirement passes through the classifier, while material that does not meet the requirement returns to the grinding chamber for further grinding. The material that passes through the classifier enters the cyclone separator for separation and collection. Fine powder carried by the external exhaust air of the mill is collected by the bag filter.
Raymond Mill Application Scope This machine is primarily used for high-fineness powder processing of hundreds of materials, including barite, calcite, potassium feldspar, limestone, talc, white stone, gypsum, and other non-flammable and non-explosive mineral products, as well as chemical and building materials. These materials must have a Mohs hardness of no more than 9.3 and a humidity below 6%. The product particle size can be freely adjusted within the range of 40 to 400 mesh.

I. Structural Composition of Raymond Mill
The complete structure of the Raymond mill consists of the main grinding machine, classifier (powder separator), piping system, blower, finished product cyclone separator, external exhaust bag filter, and control cabinet. Among them, the main unit of the Raymond mill is composed of a frame, an air intake volute, a scraper, grinding rollers, a grinding ring, a housing, and a motor.
II. Specifications and Technical Features of Our Company's Universal Raymond Mill
The specifications of the general-purpose Raymond mill produced by our company are divided into the following types:
Suspension Roller Raymond Mill: 3R1410, 3R2115, 3R2615, 3R2714, 4R2714, 3R3016, 4R3016, 4R3216, 5R4119.
High-pressure Suspension Roller Mill: YGM3R7826, YGM3R8327, YGM4R8327, YGM4R9531, YGM5R4119, YGM6R4525.
The grinding rollers and rings of the Raymond mill produced by our company are made of high-wear-resistant materials, extending their service life. The rotor of the mill's classifier and the fan impeller are precisely balanced using a dynamic balancing machine, reducing vibrations caused by imbalance. The mill's reducer adopts a new type of hard-tooth-surface reducer, which is sturdy, durable, and offers higher transmission efficiency.
III. Technical Parameters of Raymond Mill
