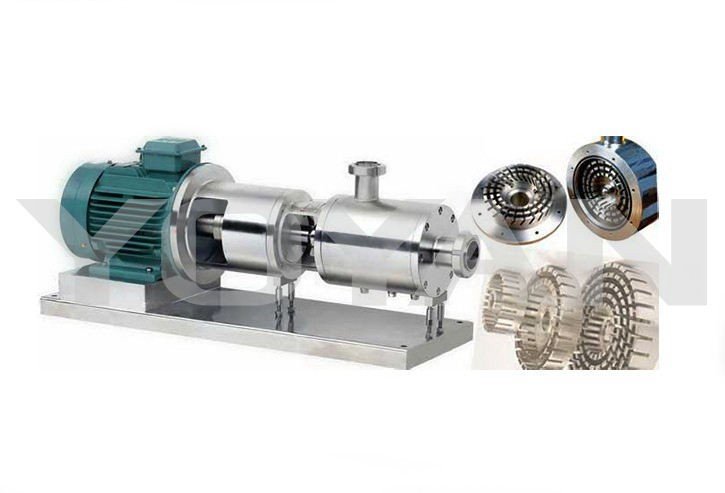

Three-stage emulsification pump

Product Introduction

Three-stage Inline High Shear The cutting emulsification pump is a high-efficiency emulsifier used for continuous production or cyclic processing of fine materials. The motor drives the rotor to operate at high speed, applying mechanical external force to narrow the particle size of liquid-liquid and solid-liquid materials, thereby achieving uniform distribution of one phase. into one or more other phases, achieving effects of refinement, homogenization, dispersion, and emulsification, thereby forming a stable emulsion state; a feed pump can be configured before the three-stage inline high-shear emulsification pump, offering certain applicability for medium to high viscosity materials. The equipment operates with low noise, runs smoothly, has no dead corners, and ensures 100% of the material passes through the processes of dispersion and shearing. It also features short-distance, low-lift conveying capabilities.

Working principle

The three-stage inline high-shear emulsifying pump adopts a horizontal structure; three sets of rotors and stators are installed in the narrow and elongated working chamber, with the rotors and stators coupled in pairs and precisely matched. Driven by the motor, the intermediate shaft operates at high speed, creating a vacuum between the rotors and stators, causing the material to enter from the inlet. The material is drawn into the rotor-stator cavity, where the powerful kinetic energy causes the rotor to achieve extremely high linear velocity. As a result, the material undergoes intense impact, crushing, centrifugation, liquid-layer friction, and strong shear within the gap between the rotor and stator before being ejected outward. Under various Under the action of forces in the same direction, a strong turbulent flow is generated, causing the material to flow out from the outlet. This enables multiple immiscible media, such as solid, liquid, and gas phases, to be uniformly and finely dispersed and emulsified in an instant. The equipment can perform multiple cycles of operation to achieve the desired product. Achieve stable, high-quality products.

Technical Parameters
