Sichuan Juzi Toner Specialized **Production Equipment:**JZFZThe new generation of airflow pulverization and classification systems effectively address issues commonly found in domestic equipment, such as low yield, over-grinding, and poor classification performance. Compared with other pulverization equipment, the products obtained exhibit significant advantages in terms of morphology, particle size distribution, and purity. It is one of the few domestic devices capable of processing colored consumable powders. Sichuan Juzi pioneered this innovation.JZFZ-X-2Series "Fluidized Bed"+"Vertical Turbo Classifier" is an air jet mill and classifier that can efficiently and precisely produce high-quality copier toner./Mobile phone battery powder.

The product features high precision control, concentrated particle size distribution, and high yield. The mature process can be widely applied in the production of toner for printers and copiers. It can be customized according to different application purposes and requirements, offering flexible operation and stable performance.

Equipment Selection:Airflow crushing and classification equipment-JZLSeriesJZFZSeries

Equipment Material:Stainless steel Carbon steel

Applicable model1：JZL-200,300,400type

Application Fields-Toner:Toner for printers and copiers(Color powder, black powder)

Equipment Selection

SichuanHere's the English translation: **Juzi Powder Equipment**Jet millAccording to different requirements for toner particle size and production output, you can choose our company'sJZL-200,300,400-type equipment, available in stainless steel and carbon steel. Our company can customize equipment platforms, with multi-stage classifiers connected in parallel or series for flexible operation and stable particle size production!

Equipment Features

1A complete and stable flow field established by multiple high-efficiency, high-precision classifiers connected in series strictly limits the generation of large particles, achieving an excellent particle size distribution and a highly narrow particle size range, allowing the product's particle size to be controlled within a specific range.

2The control of crushing strength and high-efficiency classification technology ensure a higher yield rate, enabling the production of black powder exceeding80%The yield rate above, color powder greater than70%The yield rate above.

3The effective application of particle morphology control technology can achieve better product shapes.

4Once the operating parameters of the equipment are adjusted and fixed, the operation remains stable, with no differences or changes observed during prolonged continuous operation.

5Fully enclosed negative pressure operation, low-temperature crushing, high-purity handling, no dust pollution, system emissions ≤5mg/m3。

6In supersonic airflow, adiabatic expansion and the resulting fluidized pulverization state can absorb a large amount of heat generated during the crushing process.

Achieve ultra-fine processing of copier toner at room temperature or even lower temperatures.

7The full utilization of jet energy has greatly improved crushing efficiency.

8The complete and stable flow field established by the high-efficiency and high-precision wheel classifier can strictly limit the generation of large particles, resulting in extremely

Good particle size distribution and a narrow particle size range.

9In a fully fluidized state, excellent spherical particle shapes can be achieved; qualified fine powders are immediately classified, avoiding over-grinding, resulting in a yield greater than70%The above yield rate;

10Wide range of applications; when used in conjunction with a high-precision turbo classifier, this machine can produce **ultra-fine powders with excellent results**.

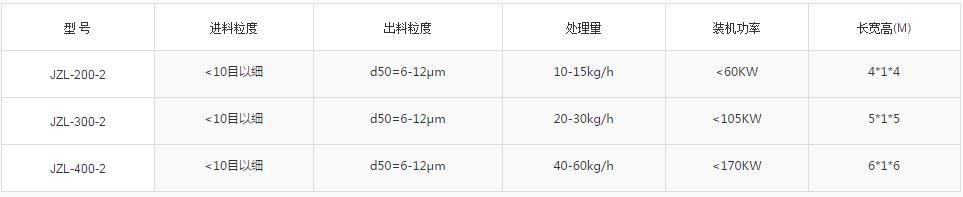

Main Technical Parameters

Scope of Application

This equipment is suitable for crushing materials such as lithium cobalt oxide, manganese oxide, nickel powder, etc., with a particle size of2-20Arbitrary regulation within microns, with high yield. Suitable for ultra-fine processing of various mobile phone battery powders.

This machine is primarily designed for processing operations where the particle size distribution of the crushed material needs to be controlled within a specified range.,As:Copier toner5～12Micron, mobile phone battery powder5～15micron,Operating two stages of classifiers in series.,It is capable of producing products within a specific particle size range.,Widely used in:Carbon powder, lithium iron phosphate, cobalt oxide, manganese oxide, lithium carbonate, lithium cobalt oxide, etc.

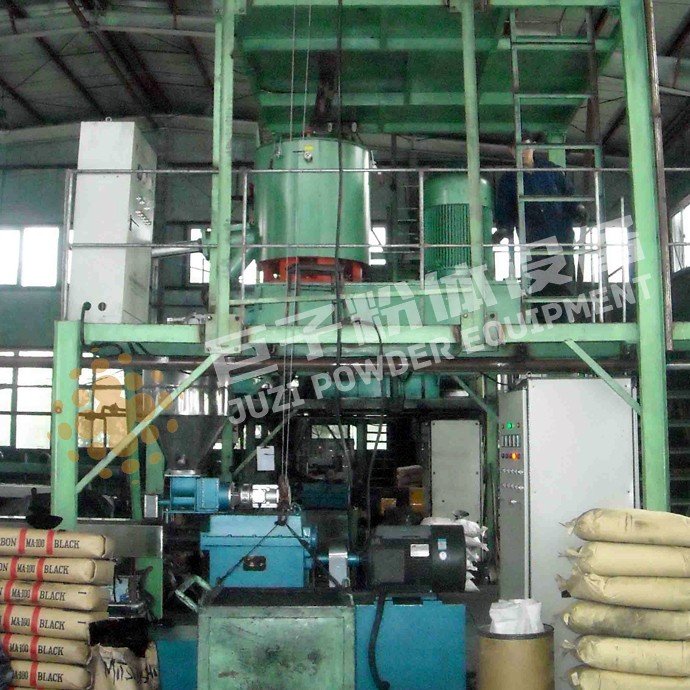

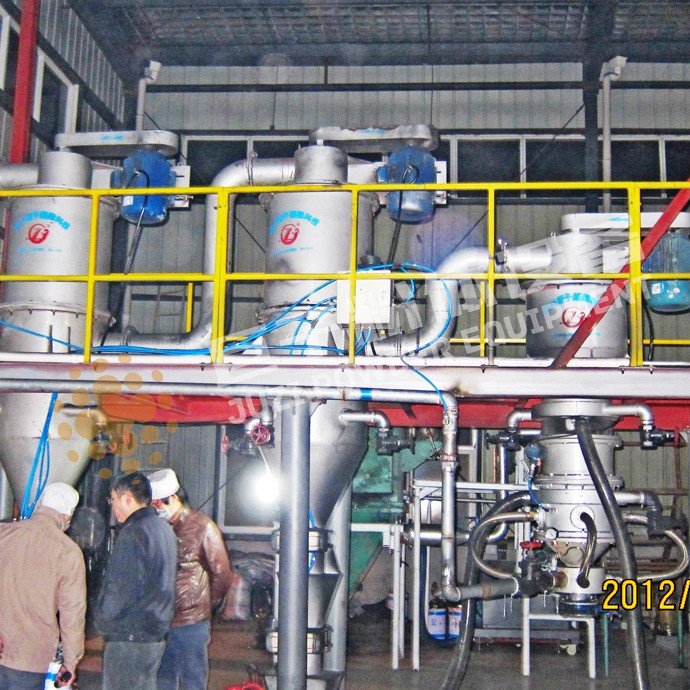

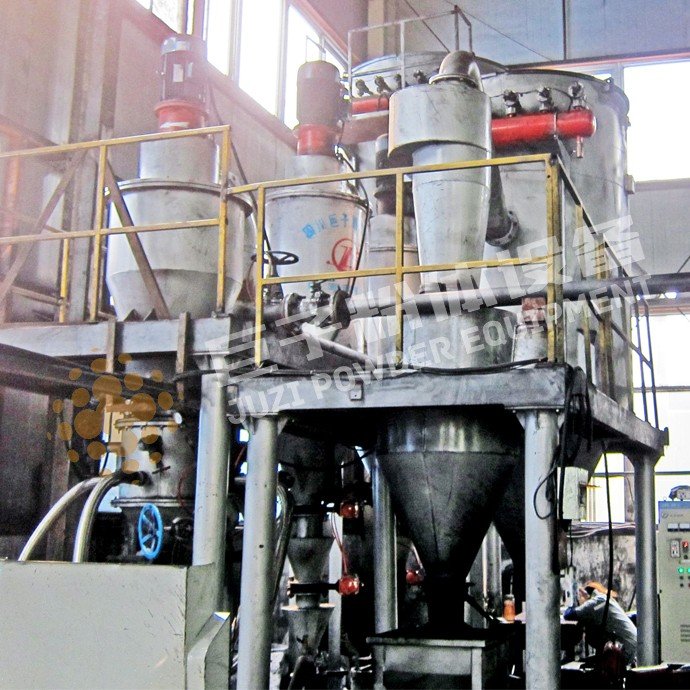

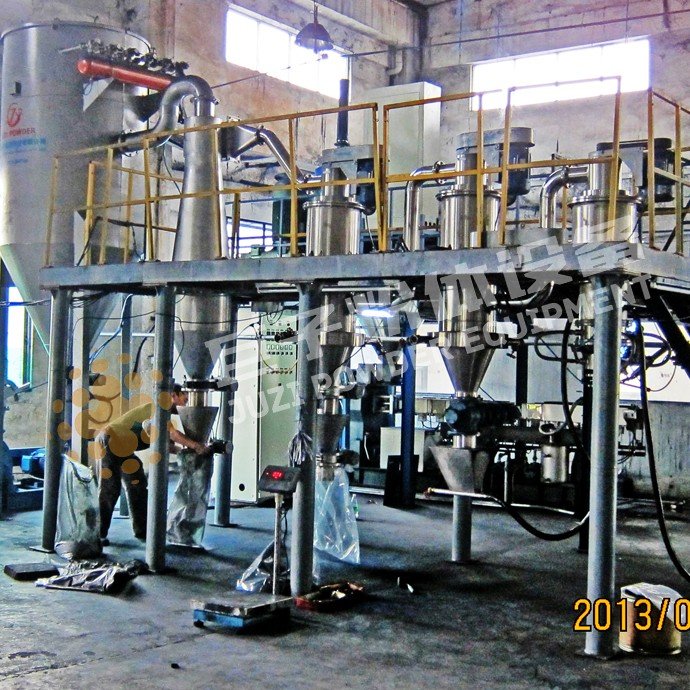

Equipment Display
