The ultra-fine ring mill is an innovative mechanical crushing equipment that combines the characteristics of traditional Raymond mills and ball mills. It is mainly composed of a concave grinding track and a convex grinding wheel, utilizing the circular working trajectory of the Raymond mill and theThe advantages of point-to-point contact force include finer crushing compared to Raymond mills and higher working efficiency than ball mills. The crushing medium is made of ** high-hardness alloy elements, which avoids the wear issues of Raymond mills, effectively reducing equipment maintenance costs and improving the purity of the final product.

The standard complete set of equipment for this machine consists of a superfine ring mill main unit, a high-precision vertical turbine classifier, a cyclone collector, a polymer bag-type electronic pulse dust-cleaning and collection system, along with the corresponding motors and electrical control equipment.

Equipment Features

1.Advanced grinding and classification technologies are integrated into one system, offering advantages such as high fineness, large output, and low energy consumption.
2.The interior of the mill has no bearings and no grease, allowing for a finer particle size range compared to ordinary mechanical mills. It can produce products with a steep particle size distribution curve, achieving high fineness.d97=3~25Adjustable within the micrometer range.
3.Products that meet the particle size requirements are immediately classified and removed, preventing over-grinding and thereby improving crushing efficiency.50%Left and right.
4.The equipment is equipped with a high-precision vertical turbo classifier and an efficient pulse bag collection system, operating under fully enclosed negative pressure with no dust pollution.
5.It features a peeling and shaping function, delivering significant results for materials with strict requirements for flake-like forms.
6.The complete set of equipment is easy to install and can be put into production immediately after installation. The equipment operates stably and reliably, ensuring normal continuous production. The product fineness classification accuracy is higher than that of similar products, and product quality can be guaranteed.

Application Areas

Typical materials: ultrafine grinding of ground calcium carbonate (marble, dolomite, calcite, and limestone), barite, kaolin, bentonite, illite, talc, pyrophyllite, mica, wollastonite, vermiculite, sepiolite, attapulgite, carbon black, graphite, diatomite, celestite, gypsum, fluorite, etc.

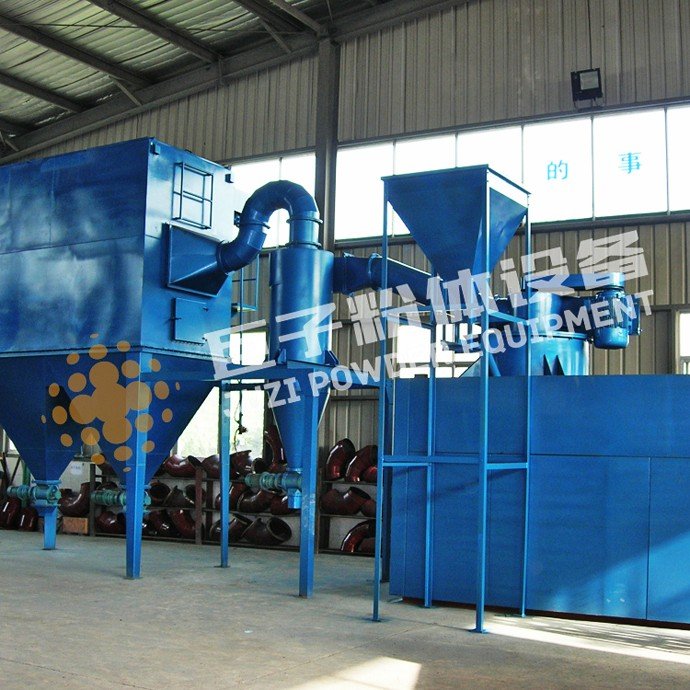

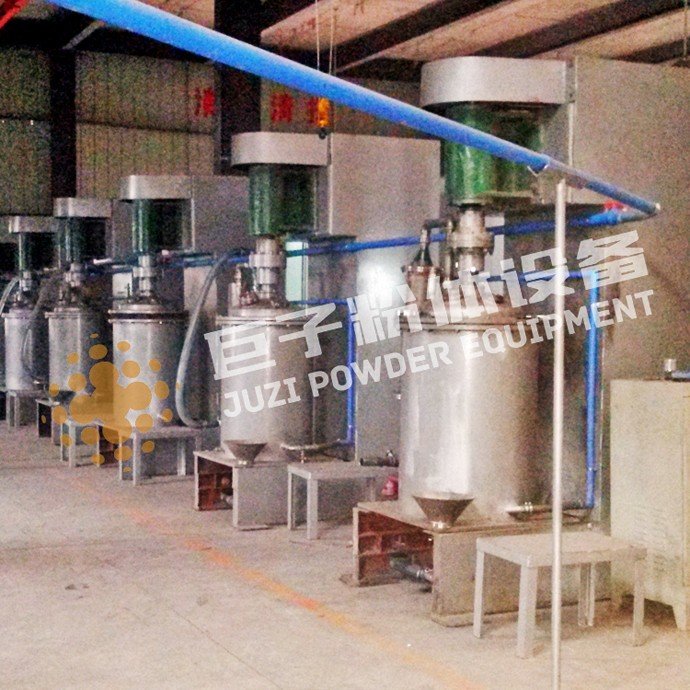

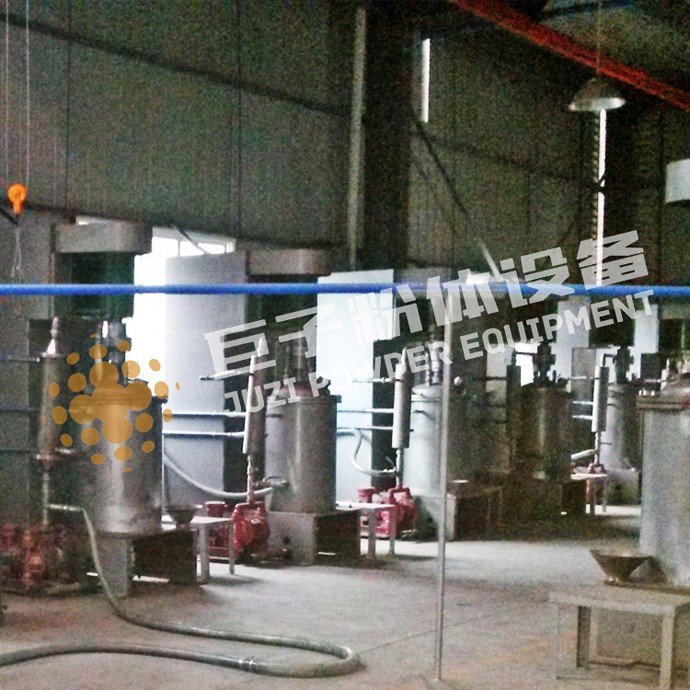

Equipment Display
