Introduction to Light Roller Ball Mill:

When the light-duty roller ball mill is in operation, the grinding media and materials inside the drum are lifted to a certain height as the drum rotates. Due to gravity, they detach from the drum wall and fall along a parabolic trajectory. The grinding media and materials tumble at high speed within the grinding jar, generating strong shear, impact, and compression forces on the materials, thereby achieving the purposes of crushing, grinding, dispersing, and emulsifying the materials.

Light-duty Roller Ball Mill Selection Guide：

1. Model Description: QM-(Volume)-(A Variable Speed Type, B Standard Type) Example: QM-50-A refers to a 50L variable speed roller ball mill.
2. Determine the machine model based on the grinding amount;
3. Select ball mill jars (or jar linings) and grinding balls made of different materials based on the properties of the materials.
4. Equipment with automatic unloading devices and dust covers can be selected.

Features of Lightweight Roller Ball Mill:

1. The machine operates smoothly, with high efficiency, energy savings, and low noise.
2. It can perform both dry and wet grinding, handle materials of various hardness levels, and carry out coarse or fine grinding, or be used for mixing materials.
3. The model with automatic discharge mechanism allows for automatic separation of material and balls, making material discharge convenient.
4. Equipped with a protective jacket, ensuring high material purity and low contamination.
5. Wear-resistant, high grinding efficiency;
6. Linings made of alloy steel, stainless steel, high-wear-resistant polyurethane, corundum ceramics, zirconia, etc., are available. Models can be selected from 20 to 2000L based on the user's production capacity.

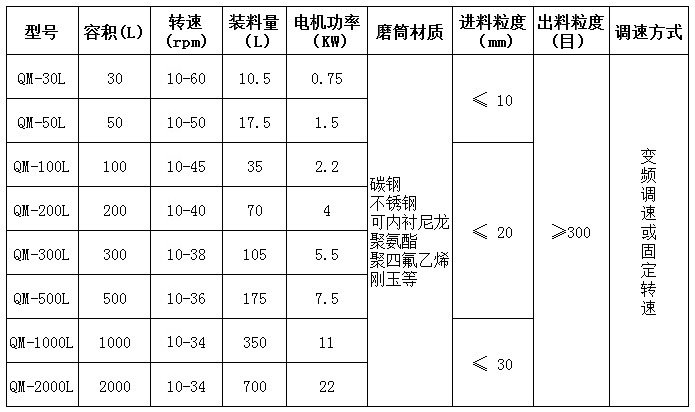

Parameters of Light Roller Ball Mill:
