Plastic CrusherCharacteristics:

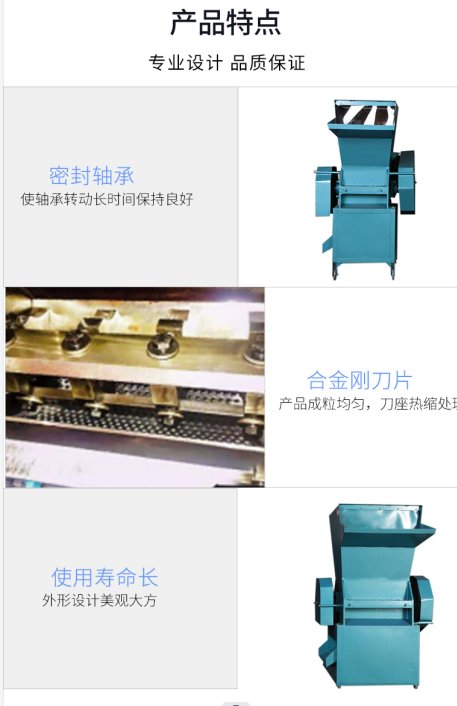

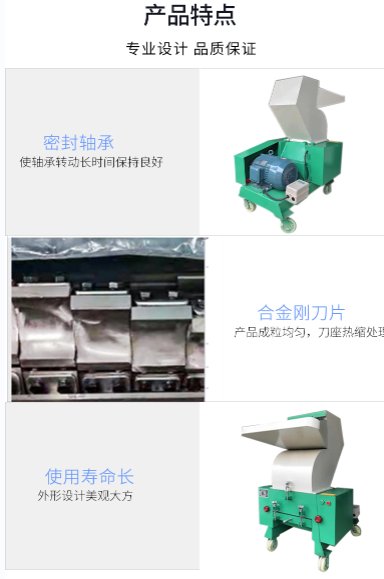

1、The blade structure of the sheet-type knife is divided into claw-type and flat-type. The flat-type knife holder is suitable for bottle preforms.Crushing of relatively thin plastic products, such as PC film, PET bottles, and sheets. Claw knife.Type tool holderThe crusher is suitable for crushing large, hard, and easily rolling plastics, such as bottles and rubber heads.PVC pipes, wires, bottles, rubber, silicone, or products with curved surfaces.Broken.
2、Sealed bearings are used to ensure that the bearings maintain good rotation performance over an extended period..
3、The blade design is reasonable, utilizing alloy steel blades for uniform granulation. The blade holder undergoes heat shrink treatment and strict balance testing, while the exterior design is aesthetically pleasing and elegant..
Model (Karambit) | 180 | 250 | 300 | 400 | 500 | 600 |
Capacity: KG/H | 50-100 | 150-200 | 200-300 | 250-450 | 400-700 | 450-800 |
Voltage | 380V (three-phase electricity) | |||||
Motor power (kW) | 1.5/2.2 | 4 | 5.5 | 7.5 | 11 | 15 |
Number of blades | 9+2 | 6+2 | 9*2 | 12+2 | 15+2 | 18+4 |
Rotating diameter | 148 | 225 | 240 | 270 | 280 | 350 |
Screen mesh hole diameter (mm) | 6 | 8 | 8 | 10 | 10 | 10 |
Import size MM | 110#180 | 250*160 | 320*200 | 420*220 | 520*260 | 600*240 |
Overall DimensionsMM | 630*520*950 | 900*700*1050 | 100*750*1180 | 1060*880*1320 | 1150*1000*1450 | 1200*1060*1650 |
Machine weightKG | 120 | 230 | 330 | 430 | 550 | 780 |
Model (Flat Blade) | 300type | 400type | 500type | 600type |
Rotating knife diameter (mm) | 300 | 300 | 300 | 350 |
Number of rotating blades | 3 | 3 | 3 | 9 |
Length of the rotary blade | 300 | 400 | 50() | 600 |
(mm) | ||||
Fixed number of blades | 2 | 2 | 2 | 4 |
Fixed blade length | 300 | 400 | 500 | 600 |
Capacity (kg/h) | 180-250 | 250-350 | 300-450 | 350-400 |
End mesh aperture (mm) | 8--12 | 8--12 | 8--12 | 10 |
Spindle speed (r/mi n) | 570 | 500 | 512 | 576 |
Motor power (kw) | 4 | 5.5 | 7.5 | 15 |
Import size | 380*200 | 480*250 | 600*250 | 600*300 |
(mm) | ||||
Overall Dimensions | 1000*750*1250 | 1200*850* 1400 | 1300*950*1500 | 1050*1100*1600 |
(mm) | ||||
Machine weight | 240 | 380 | 440 | 850 |
