Three-headed Agate Grinder

价  格
28000.00
品牌:
创未来
型号:
MNY-Φ120×3
Degree of crushing:
Ultra-fine grinding
Energy consumption per unit:
The specific details are subject to the actual situation.
Output:
Related to the bulk density of the material.
Installed Power (kW):
0.75KW
Product fineness:
100-1000 mesh
Feed particle size (mm):
5-20MM
Working principle:
Collision impact
湖南创未来机电设备制造有限公司
店主:邓经理
地址:湖南省岳阳市平江县伍市镇华文路伍市工业园
  • 产品介绍

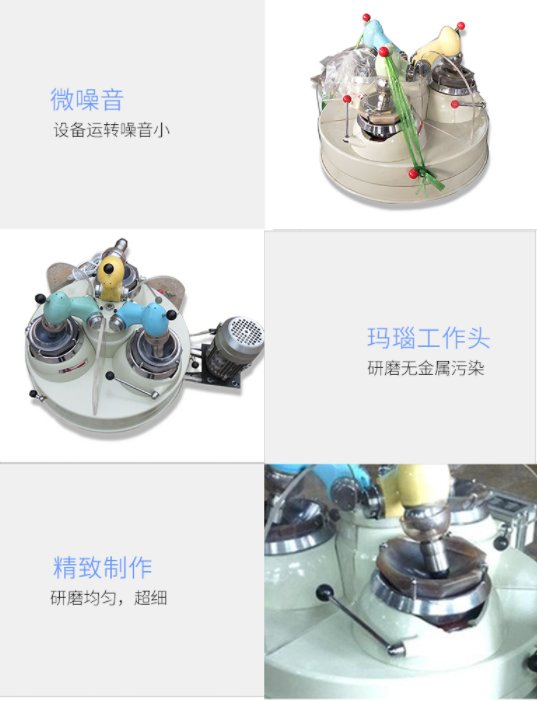

MNY-Φ120×3Three headsAgateA grinding mill is a device used for dry grinding of analytical samples. It features no metal contamination of the ground sample, uniform and ultra-fine grinding, simple operation, and low operational noise. It is primarily used in laboratories of geology, coal, mining, metallurgy, chemical engineering, building materials, hydropower, as well as in universities and research institutions. It serves as standard equipment for various types of analysis, sorting, inspection, and testing. It can also be used for quality inspection, environmental testing, or for grinding small quantities of general materials in relevant fields.

Project

Unit

MNY-Φ120×3 Three-Head Agate Grinder

Mortar diameter

mm

Φ120

Number of grinding heads

I'm sorry, but you've only provided a single Chinese character "个" (a common measure word), without any surrounding context or HTML tags. Could you please provide the full text you'd like translated?

3

The rotational speed of the grinding rod.

r/min

220

Mortar rotation speed

r/min

9

Feed particle size

mm

-1.5

Discharge particle size

mm

-0.074

Reference weight

kg

105

Overall Dimensions

mm

770×740×470
