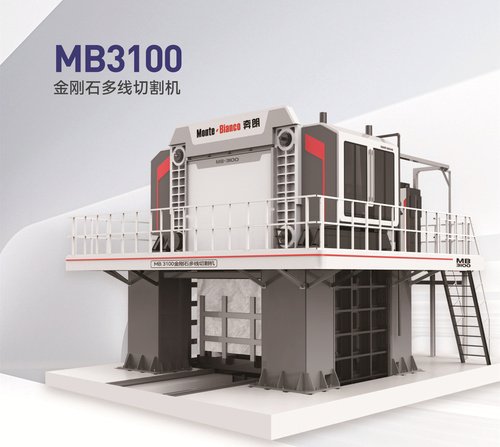

| The MB3100 mainly consists of the transmission system, tensioning system, lifting system, wiring system, trolley travel system (optional), speed and voltage regulation system, and spray system. It utilizes rollers to drive the diamond wire, employing a lifting-type reciprocating motion for cutting materials such as stone. It can be used for processing large slabs of natural marble, artificial stone, refractory materials, and composite materials. The MB3100 adopts a gantry structure, ensuring structural stability and good dimensional accuracy. The operating system features a user-friendly human-machine interface with clear graphics, simple operation, safety, and reliability, along with real-time recording and data storage capabilities. |
High yield of usable material
The saw kerf is as small as 0.4-0.6mm, resulting in a high effective yield rate.
Low energy consumption
Save electricity and water. Currently, the power consumption per square meter of processing is approximately 1.5-3 kWh (varies depending on the material being cut), and water consumption is reduced by over 30% compared to traditional equipment.
Low waste discharge
Wastewater and waste residue emissions are low. Compared with frame saw processing equipment, wastewater emissions are reduced by over 30% and waste residue by over 50% for the same production capacity.
Low noise
Compared to traditional stone processing equipment, the noise level is reduced by approximately 35 decibels.
High security
The cutting vibration is minimal and does not pull the slab, eliminating the risk of block tipping and injury.
Lift-type
With the cutting head fixed, higher running line speeds can be achieved.
Demonstration of the stone processing process using equipment.
Cutting Preparation Cutting in Progress Cutting Complete
Technical Parameters
| Project | Unit | Parameter |
| **Workpiece Dimensions | mm | L3100×W2100×H2100 |
SlotThe diameter of the wheel is straight. | mm | (Φ250±20)×2140 Four-Axis |
The lifting stroke of the lifting platform | mm | 2300 |
Lifting method | / | "Block lifting type" |
Rough stone **load capacity** | t | 40 |
Speed of the lifting platform** | mm/min | Max200 |
Wire running speed | m/min | Max1200 |
| Overall Dimensions | mm | L9000×W8100×H6800 |
Machine weight | t | 68 |
