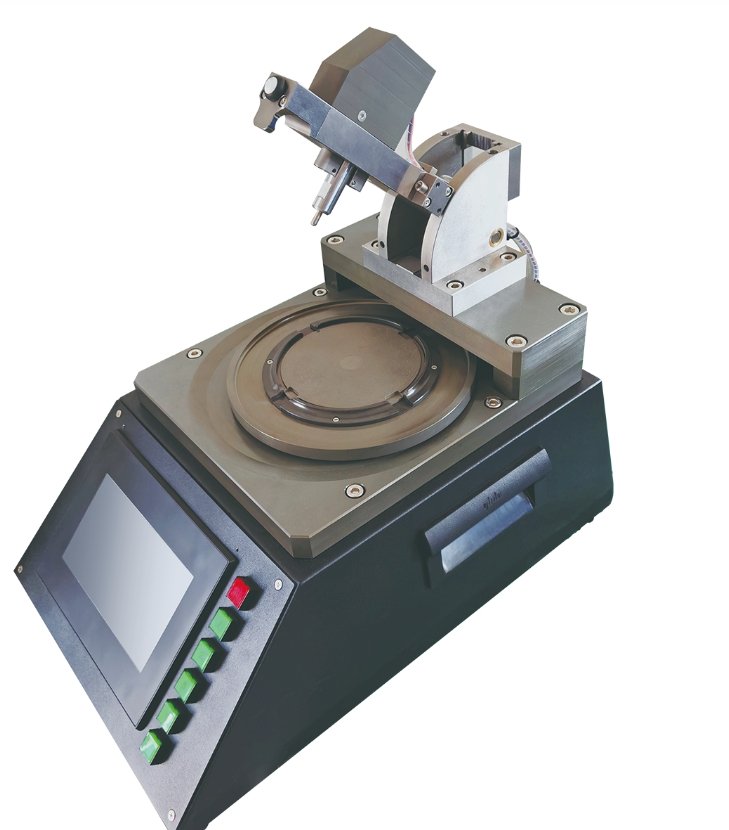

Equipment Features
1. Closed-loop pressure control is adopted to precisely regulate pressure, with an adjustable pressurization range of 0 to 10 kg.
2. The operation interface combines a touch screen with buttons, providing an intuitive display of various parameters such as production capacity and grinding processes.
3. Equipped with slow start and slow pressurization functions. The slow start time, operation time, pressurization time, and grinding speed are adjustable in real time, making it suitable for different grinding processes.
4. Large storage memory, capable of storing numerous grinding programs;
5. The grinder drive uses a brushless motor, ensuring stable rotational speed, accurate speed adjustment, and quick response.
| Technical Parameters | Power supply | AC 220V 50Hz | Power | 65W |
| Gas source | 0.6Mpa~0.9Mpa, recommended pre-filtering accuracy: 3um | Pressurization range | 0~10Kg | |
| Grinding disc speed | 20~200r/min | Grinding area of the grinding disc | 5 inches (suitable for φ127mm abrasive paper) | |
| Grinding process | Grinding steps: 4 steps | Net weight | 35Kg | |
| Soft start time: 0~60s | Machine dimensions | Pressure arm raised: width 370mm × depth 500mm × height 530mm Pressure arm lowered: 370mm (excluding fiber optic bracket) | ||
| Slow pressurization time: 0~60s | ||||
| Grinding time: 0~999s |
