Product Introduction

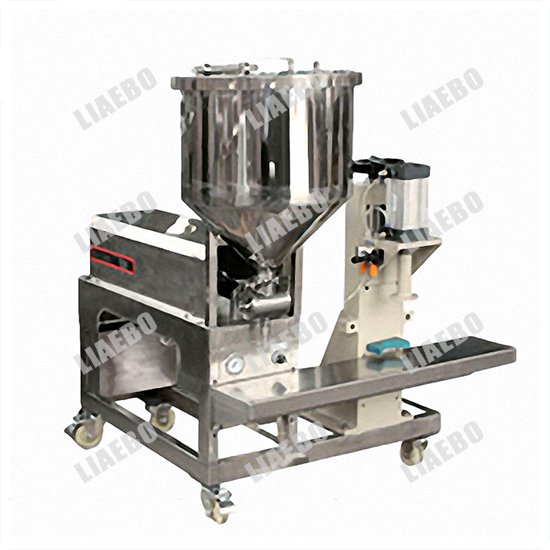

The volumetric filling machine uses a volumetric method for calculation, achieving control of the filling volume by adjusting the piston displacement. The front end of the feed port is equipped with a feed pump or a pressurized raw material storage tank to transport the material from the tank to the filling machine. A filtration device can be added before filling to remove impurities, ensuring product quality. Through the reciprocating motion of the piston, rapid filling is achieved. This equipment offers advantages such as high filling efficiency and easy maintenance. It is widely used in industries such as coatings, inks, paints, asphalt, adhesives, lubricants, petrochemicals, and fine chemicals, making it suitable for filling fluids with high, medium, and low viscosities.

Product Features

Fast filling speed, wide range of applications.

The filling head can be either single or dual, operating with a piston mechanism for high-speed filling, which reduces costs and alleviates workers' workload. It is suitable for filling round, square, flat containers, as well as various bottle neck sizes.

Easy to operate and maintain.

Operated by a foot switch, it is convenient and practical, allowing one person to complete the operation. Equipped with all imported components, it offers stable and reliable quality.

Excellent environmental performance and safety.

Fully pneumatic control, meeting explosion-proof requirements; the filling and feeding process uses pipeline connections, and the capping/clamping operation is completed quickly after filling, minimizing solvent evaporation and ensuring a good on-site environment.

The volumetric filling machine opens the inlet valve, closes the outlet valve, and retracts the piston rod to draw material from the raw material tank into the piston chamber. Then, it closes the inlet valve, opens the outlet valve, and advances the piston rod to push the material from the piston chamber into the filling container. This process repeats cyclically, and the machine is equipped with a conveyor roller track and a capping/clamping device to complete the material filling and sealing process.

Product Details
