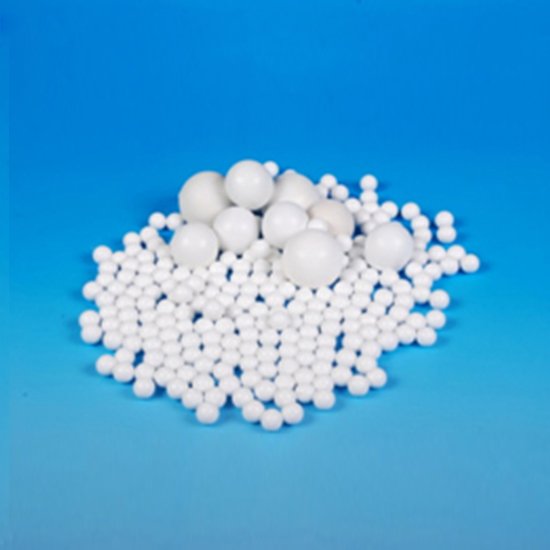

Product Image
Product Introduction
It has good toughness and impact resistance, and does not shatter during high-speed operation.
Its wear resistance is 30-50 times that of glass beads, 5 times that of zirconium silicate beads, and 6-8 times that of Al2O3 beads.
High density and high grinding efficiency, especially suitable for grinding and dispersing high-viscosity materials.
Product Details
Product Name | TZP beads | ZTA beads | Zirconium silicate beads | Composite beads | Al2O3 beads |
Main Chemical Composition (%) |
ZrO2:94.6% Y2O3:S:2±0.2
|
ZrO2:75.7,Y2O3:4.3 Al2O3:20
|
ZrO2:65 SiO2:35
|
ZrO2:10-45, Al2O3:15-50, SiO2:20-40
| Al2O3:90-99 |
Density (g/m³) | ≥6.0 | 4.2 | ≥4.0 | 3.0-3.8 | 3.6-3.9 |
Filling density (g/m³) | ≥3.7 | ≥2.5 | ≥2.5 | 1.8-2.3 | 2.0-2.5 |
Flexural strength | 900 | 450 | 400 | 220-300 | 280-350 |
Mohs hardness | 9 | 9 | 7-8 | 7-8 | 8-9 |
Abrasion resistance | ★★★★★ | ★★★★ | ★★★★ | ★★★ | ★★★ |
Specifications of Grinding Beads
Φ0.1, Φ0.2, Φ0.4-0.6, Φ0.6-0.8, Φ0.8-1.0, Φ1.0-1.2, Φ1.2-1.2, Φ1.4-1.6, Φ1.6-1.8, Φ1.8-2.0, Φ2.0-2.5…….
