Technology

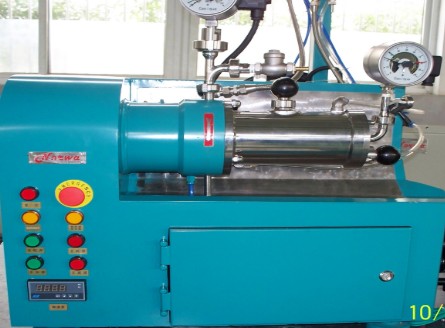

○Horizontal cantilever eccentric disc structure, integrated stainless steel bearing housing, equipped with German FAG bearings and German double-end mechanical seal, ensuring reliable operation and resistance to solvent wear.

○Laboratory research and development, as well as small-scale simulated production;
○Can be linearly scaled up for production;
○ Continuous grinding process or batch grinding process;

○ Grinding Chamber: Standard hard alloy wear-resistant metal grinding chamber, equipped with a white metal disc, ensuring no contamination of the color paste saturation.
○Simple operation, can be rotated 90° for cleaning;
○ Swiss ABB stepless frequency conversion enables precise control of energy input and energy consumption calculation;
○ Grinding media optional range: 0.50-3.0mm;
○ Standard configuration includes an external diaphragm pump (Ingersoll Rand, USA), which allows precise flow control.
○Ultimate fineness, Mini D97 ≤ 80nm (ATO thermal insulation coating)

Application

○ Color paste, paint;

○ Ink;

High-end automotive metallic paint, electrophoretic paint
