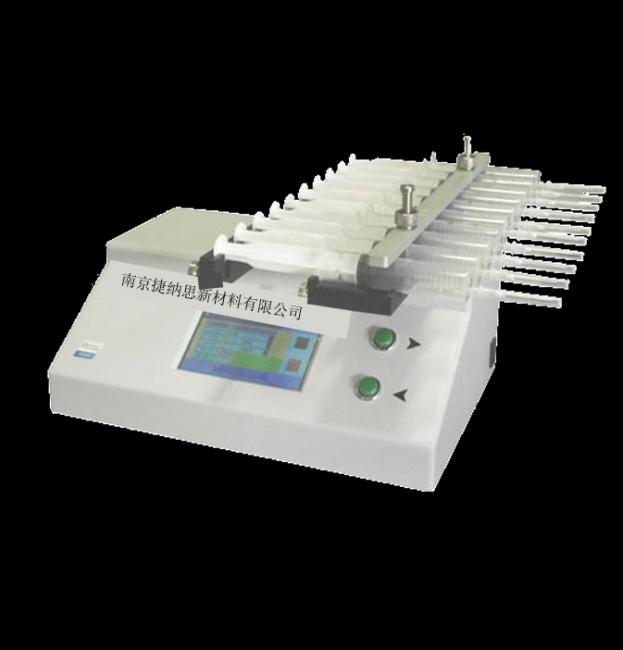

The JNS/MF series single-push mode syringe pump can accommodate 1 to 10 syringes, with an accuracy of ≤0.1%. It features excellent performance, high precision, and high accuracy. The durable transmission design ensures a long service life and reliable operation. The lead screw is fixed with specialized high-precision aviation bearings instead of traditional copper sleeves, offering extended lifespan and high precision, while supporting multiple working modes. The high-resolution color touchscreen allows for simple and quick parameter settings, with clear and direct status display. It is equipped with adjustable protection mechanisms and alarm functions. The all-stainless steel housing makes it easy to clean and maintain.

JNS/MF Series Single Push Mode Syringe PumpCan be clamped1A syringe with precision up to<=0.1%Excellent performance, high precision, and strong accuracy; durable mechanical transmission design ensures long service life and good reliability.The lead screw is fixed using specialized high-precision aviation bearings instead of traditional copper sleeves, offering long service life, high accuracy, and support for multiple working modes.High-resolution color touchscreen LCD allows for quick and easy parameter settings and provides a clear, straightforward status display; equipped with an adjustable protection mechanism and alarm system.；SupportMODBUSThe protocol is easy to connect with other devices.AllStainless steelShell,Easy to clean and maintain.

Single-channel microfluidic pumpDual-channel microfluidic pump

Four-channel microfluidic pumpChannel microfluidic pump

Product Features

1Intuitive and easy to use: Adopting4.3The colorful LCD display with touch function, measured in inches, offers intuitive visuals and simple operation.

2Computer control: available viaUSB-TTL232The communication cable connects the device to the computer, and it is controlled through backend software.

3Clean and worry-free: Connect a wireless mouse to remotely control the injection pump, enabling worry-free operation in enclosed environments such as clean benches.

4Multi-vendor mode: The program integrates market95%The above commonly used syringe models can automatically remember newly input syringes.

5、DIYFunction: Provides underlying dynamic libraries and programming interfaces, allowing users to access them via a personal computer.C#、C++、VBfor secondary development using programming languages such as...

6Precise Calibration: The program comes with a built-in flow calibration function to eliminate volume errors caused by prolonged operation.

7Protection Settings: Protect the syringe from damage by setting the left and right limit positions.

8Power-off memory: The system automatically saves the current operating parameters and can resume work directly after power is restored.

Technical Parameters

Number of channels:1-10

Injection volume per microstep:0.026uL(10mLSyringe)

Applicable syringe type:0.5mL-200mL

Injection distance per microstep: 0.156um

Flow range:0.1uL/h-681.73mL/min

**Linear velocity:**17.33mm/s

*Small linear velocity:0.00001583mm/s

**Pace:6933 Step/s

*Small Step Speed:0.02533 Step/s

Working mode: single push(RSP01-A),Push-pullRSP01-B）

Linear thrust:>30Kgf

Control accuracy: when>30%When fully loaded, control the error margin.<=0.1%

Control and Display:4.3Inch LCD Colorful Touch Screen

Voltage range:DC18V-DC36V

Working environment: temperature5-40℃, relative humidity<80%
