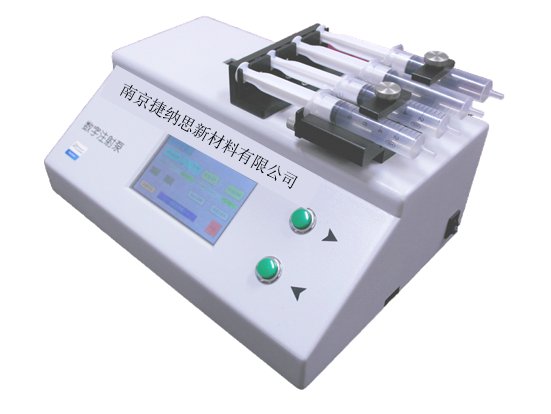

The JNS/MF series push-pull mode syringe pump is a low-flow, high-precision syringe pump capable of continuous liquid transfer. It features a durable mechanical transmission design for long service life and high reliability. The lead screw is fixed with specialized high-precision aviation bearings instead of traditional copper sleeves, ensuring extended lifespan and high accuracy, while supporting multiple working modes. Equipped with a high-resolution color touchscreen LCD, parameter settings are simple and quick, and status display is direct and clear. It includes adjustable protection mechanisms and an alarm system. Supporting the MODBUS protocol, it facilitates easy connection with other devices. The all-stainless steel housing makes it easy to clean and maintain.

JNS/MF Series Push-Pull Mode Syringe PumpIt is a syringe pump with low flow rate, high precision, and the ability to continuously transfer liquids.；Durable mechanical transmission design, long service life, and high reliability.The lead screw is fixed using specialized high-precision aviation bearings instead of traditional copper sleeves, offering long service life, high accuracy, and support for multiple working modes.High-resolution color touchscreen LCD, with simple and quick parameter settings and clear status display; equipped with adjustable protection mechanisms and alarm systems.；SupportMODBUSprotocol, easy to connect with other devices;AllStainless steelShell,Easy to clean and maintain.

Single-channel syringe pump, Dual-channel syringe pump

Four-Channel Syringe Pump, Ten-Channel Syringe Pump

Product Features

1Intuitive and easy to use: Adopting4.3The colorful LCD display with touch function, measured in inches, offers intuitive visuals and simple operation.

2, computer control: can be accessed viaUSB-TTL232The communication cable connects the device to the computer, and it is controlled through backend software.

3Clean and worry-free: Connect a wireless mouse to remotely control the injection pump, enabling worry-free operation in enclosed environments such as clean benches.

4Multi-vendor mode: The program integrates market95%The above commonly used syringe models can automatically remember newly input syringes.

5、DIYFunction: Provides underlying dynamic libraries and programming interfaces, allowing users to operate via a computer.C#、C++、VBfor secondary development using programming languages such as;

6Precise Calibration: The program comes with a built-in flow calibration function to eliminate volume errors caused by prolonged operation.

7Protection Settings: Protect the syringe from damage by setting the left and right limit positions.

8Power-off memory: The system automatically saves the current operating parameters and can resume work directly after power is restored.

Technical Parameters

Number of channels:1-10

Injection volume per microstep:0.026uL(10mLSyringe)

Applicable syringe type:0.5mL-200mL

Injection distance per microstep: 0.156um

Flow range:0.1uL/h-681.73mL/min

**Linear velocity:**17.33mm/s

*Small linear velocity:0.00001583mm/s

**Pace:6933 Step/s

*Small Step Speed:0.02533 Step/s

Working mode: single push(RSP01-A),Push-pullRSP01-B）

Linear thrust:>30Kgf

Control accuracy: when>30%When fully loaded, control the error margin.<=0.1%

Control and Display:4.3Inch LCD Colorful Touch Screen

Voltage Range:DC18V-DC36V

Working environment: Temperature5-40℃, relative humidity<80%
