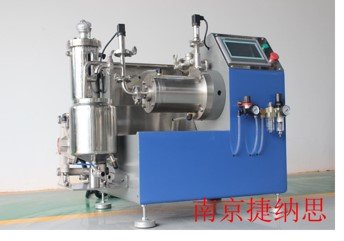

The Jenas Nano Grinder is a specialized equipment developed for the preparation of nanomaterials. It consists of a dispersion system, feeding system, grinding system, cooling system, circulation system, and control system. With easy operation and high grinding efficiency, it is suitable for the preparation of various nanomaterials and features low energy consumption, low noise, and no pollution.

The Genas Nano Grinder is a specialized equipment developed for the preparation of nanomaterials. It consists of a dispersion system, feeding system, grinding system, cooling system, circulation system, and control system. With easy operation and high grinding efficiency, it is suitable for the preparation of various nanomaterials and features low energy consumption, low noise, and no pollution.

The Genas Nano Grinding Mill is capable of adapting to the high viscosity and high solid content characteristics of materials during the grinding process, while meeting the demand for low particle size. The equipment itself features high grinding efficiency, excellent stability, and low media wear. It is not only suitable for laboratory research and development of new materials but also applicable to industrial production.

Configuration parameters:

Rotor material: Zirconia/Silicon Carbide

Cylinder material: Zirconia/Silicon carbide

Sealing method: Double-end mechanical seal, specifically designed for fine bead milling and nano-slurry applications, with easy installation and replacement.

Separator: large-area tubular grid, *minimum gap0.05mm

Feed pump: pneumatic diaphragm pump, screw pump, or gear pump

Grinding medium: yttrium-stabilized zirconia beads/Silicon carbide grinding beads, *minimum diameter0.1mm

Control system:PLCControl system, one-button start, extremely easy to operate.

Application Areas:

Printing ink Pharmaceutical Biological Science New energy battery Low-temperature sintered ceramics Non-crystalline metal pigment/dye High-quality paint Cosmetics Food Nano rice powder Pesticide

Technical Parameters:
