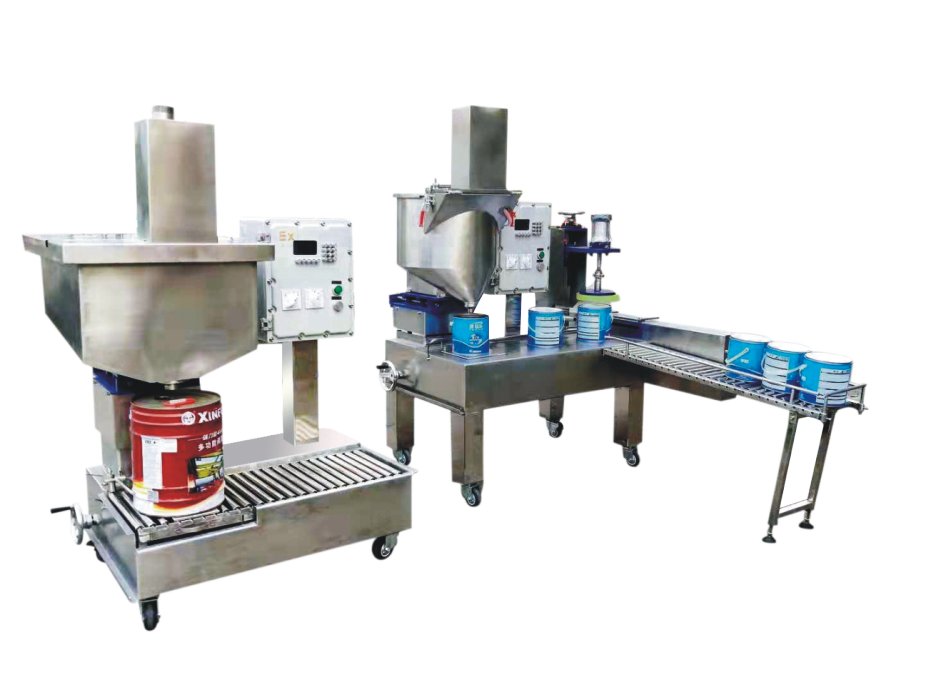

ZW-CA2 Semi-automatic Filling Machine

The CA-2 semi-automatic filling machine is a pneumatic piston-type quantitative filling machine. The piston, driven by a cylinder, draws material from the hopper into the feed tube through a three-way rotary valve, and then the cylinder drives the material to be pushed out through the three-way rotary valve, allowing the material to enter the container from the filling nozzle. The filling volume is controlled by the stroke of the cylinder's forward movement.

Advantages and Features

·Compact model, reasonable design, and easy operation;

· The pneumatic components are sourced from Taiwan's AirTac, ensuring stable performance and a low failure rate.

·The entire machine is made of high-quality stainless steel, with parts in contact with materials constructed from 304/316L stainless steel, meeting GMP hygiene requirements.

·The filling nozzle is equipped with a pneumatic anti-drip device, ensuring no stringing or dripping during the filling process.

·It can be modified to a fully pneumatic explosion-proof type based on environmental requirements, ensuring completely non-electric operation for enhanced safety.

Scope of Application

Coating inks, food, cosmetics, ointments, pesticides, sauces, adhesives, anchoring agents, and other paste-like and high-viscosity liquid materials.

Technical Parameters

Power Supply Voltage: 220/110V 50/60Hz

Air source pressure: 0.4-0.6MPa

Filling speed: 10-30 bottles/min (varies depending on material fluidity, viscosity, and filling volume)

Filling accuracy: ≤±0.5%

Optional Models: 10-280ml, 20-500ml, 100-1000ml, 500-2800ml, 1000-5000ml

Overall Dimensions: 1200*300*800mm

Weight: 40 kg
