Product Introduction

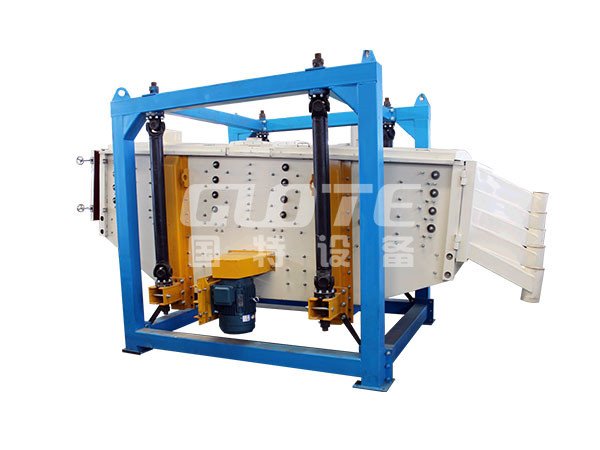

The square swing screen is a high-efficiency screening device with high precision and large output, specially developed by Guote Equipment. It generates vibration and swinging motion through the vibrator, which is transmitted to the screen surface, causing the material to quickly disperse at the front of the screen, thereby achieving efficient screening.

Application Areas

Widely applicable to industries such as chemical engineering, metallurgy, non-ferrous metals, non-metallic materials, food, and abrasives.

Highlight advantages

1. Complete variety:Complete range of types, single-layer and multi-layer options available, with the discharge port capable of 360° arbitrary rotation, suitable for continuous assembly line production.

2. Increase production capacity:The unique grid structure and cleaning method effectively extend the service life of the screen mesh while improving production precision and capacity.

3. Precise Positioning:Precise positioning, designed by professional engineers, combining multiple styles, effectively screens granular, powdered, and slurry materials.

4. Cost-effective and reliable operation:The vibrating screen uses professional suppliers of vibrating screen accessories, eliminating your concerns about accessory replacement. It operates safely and reliably, reducing maintenance costs.

5. Long service life:Energy-saving and environmentally friendly, with a long service life, high screening accuracy, and simple operation, it meets the production process requirements of domestic users.

6. Reasonable Design:Reasonable design, simple structure, and stable operation.

Working principle

A square swing screen can also be called a reciprocating vibrating screen or precision vibrating screen. The vibration force generated by its motor drive device is an inertial force that rotates around a fixed axis with a regular change in direction. Essentially, it is a reciprocating inertial force formed by the rotation of an eccentric wheel around a fixed axis. Based on the structural characteristics and working principle of the swing screen, its screen surface is generally arranged horizontally or with a slight inclination (the inclination angle is0°~5°）。

The working principle of the square swing screen is as follows::After the swing screen is started, the vibrating body of the equipment, i.e., the screen box, performs a forward and backward reciprocating motion under the action of inertial force. The screen box and the screen surface move together in a periodic swinging motion, causing the material on the screen surface to undergo a directional jumping motion along with the screen box. During this process, materials smaller than the screen openings fall through the openings to the lower layer, becoming undersized materials, while materials larger than the screen openings are discharged from the discharge port after continuous tumbling and jumping motions, thereby completing the screening process.
