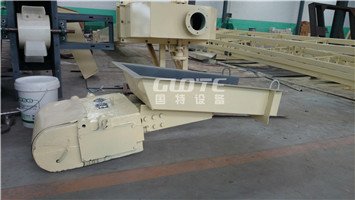

Product Name: GZ, DZ Series Vibratory Feeders

Feed particle size: ≤50-320mm

Processing capacity: 10-500t/h

**Product Introduction:**

A vibrating feeder, also known as a vibration feeding machine, is a new type of energy-efficient and versatile feeding equipment primarily used to uniformly, continuously, or quantitatively deliver bulk, granular, and powdered materials from a storage bin to the receiving equipment.

Application Fields: The GZ electromagnetic series is mainly suitable for small particles, while the DZ motor series is primarily designed for large particles.

Applicable Materials: Widely used in industries such as mining, metallurgy, coal, chemical, power, and food.

Highlight advantages:

1. Simple structure, light weight, low noise, reliable operation, high feeding capacity, and easy installation and maintenance.

2. Utilizing the self-synchronizing principle of a specially designed vibration motor, it starts quickly, operates stably, and stops smoothly.

3. The material moves forward in a continuous parabolic trajectory with a hopping motion, resulting in less wear on the feeder.

4. Can be equipped with an electric control device for remote control.

Working Principle Introduction: The feeding process of the vibrating feeder is achieved by using a special vibrating motor to drive the feeding trough to perform periodic linear reciprocating vibrations along the inclined direction. When the vertical component of the acceleration of the feeding trough's vibration exceeds the gravitational acceleration, the material in the trough is thrown up and moves forward in a parabolic trajectory through a jumping motion. The throwing and landing occur in an instant. Due to the continuous excitation of the vibrating motor, the feeding trough vibrates continuously, and the material in the trough keeps jumping forward, thereby achieving the purpose of feeding.
