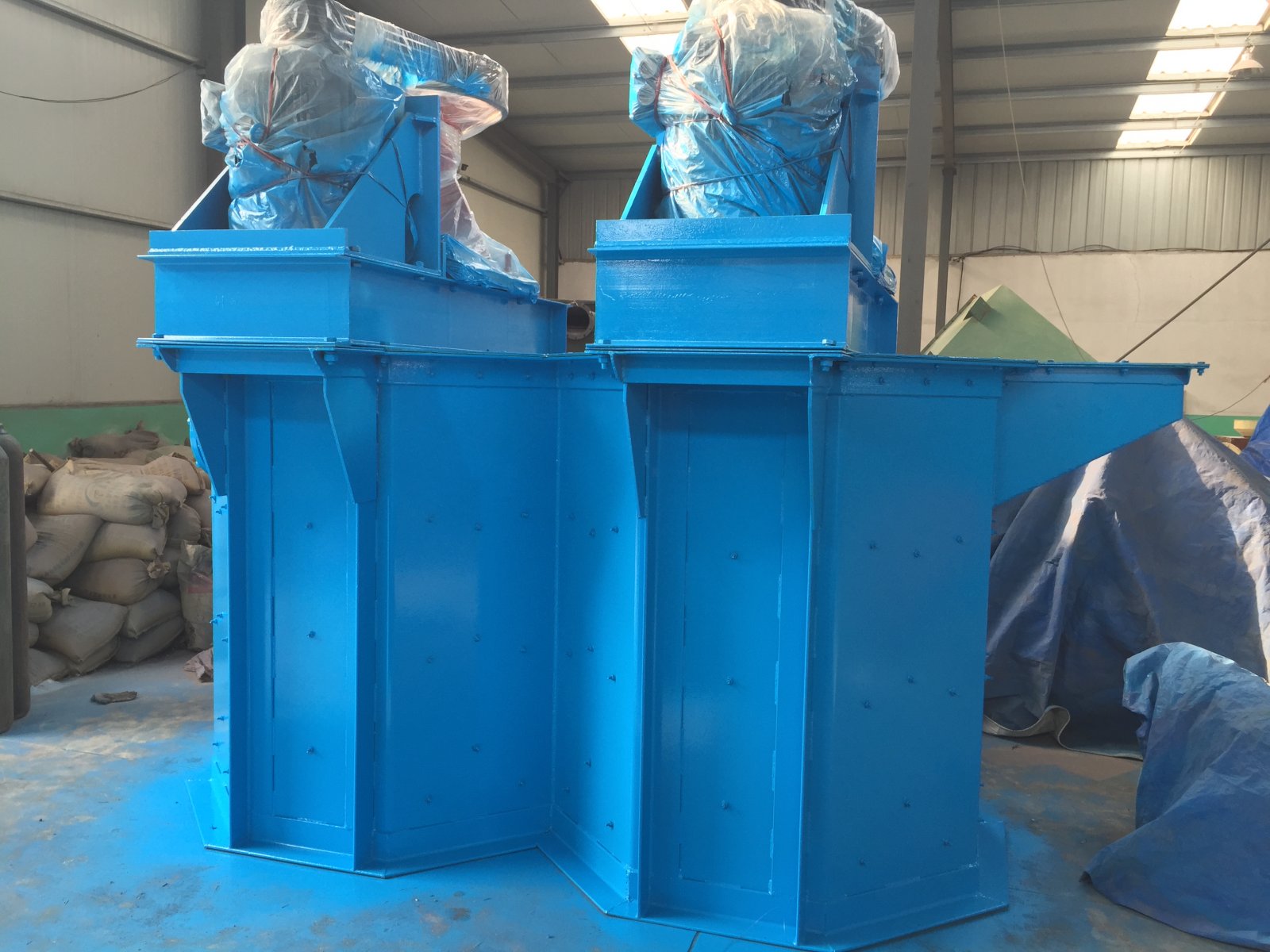

Product Name:GSC quartz sand scrubber

Feed particle size:0-5mm

Effective volume:1-8.4m³

Production capacity5-40t/h

Application: Mainly used for the dispersion of slime and the removal of impurities from mineral surfaces.

Materials: quartz sand, potassium-sodium feldspar

Equipment Introduction: This equipment is primarily used for the dispersion of slime, the removal of impurities from mineral surfaces, and scrubbing.

Highlight advantages:

1. High scrubbing intensity, with a unique tank structure and impeller configuration, increases the scrubbing intensity compared to traditional scrubbers of the same specifications.Around 30%.

2. Wear-resistant and corrosion-resistant, the tank lining and impeller are both made of wear-resistant materials, offering high anti-corrosion and wear-resistant performance.

Working Principle Introduction: The slurry enters the scrubber chamber through the feed pipe. Under the strong stirring action of the impeller, the slurry undergoes intense turbulence. The ore particles possess significant momentum within this environment, leading to vigorous friction and collision among them. The impurity film coating the ore particles, due to its low strength, is easily stripped from the mineral surface through friction and impact. Meanwhile, the cementing materials on the mineral surface, after being soaked in water and subjected to intense friction and collision among the ore particles, become loose and disintegrate, thereby achieving the separation of clay from the ore particles. These film impurities and clay materials, after being disintegrated and stripped into the slurry, can be separated from the slurry through subsequent desliming. In actual production processes, different reagents are added based on the specific conditions of the minerals.
