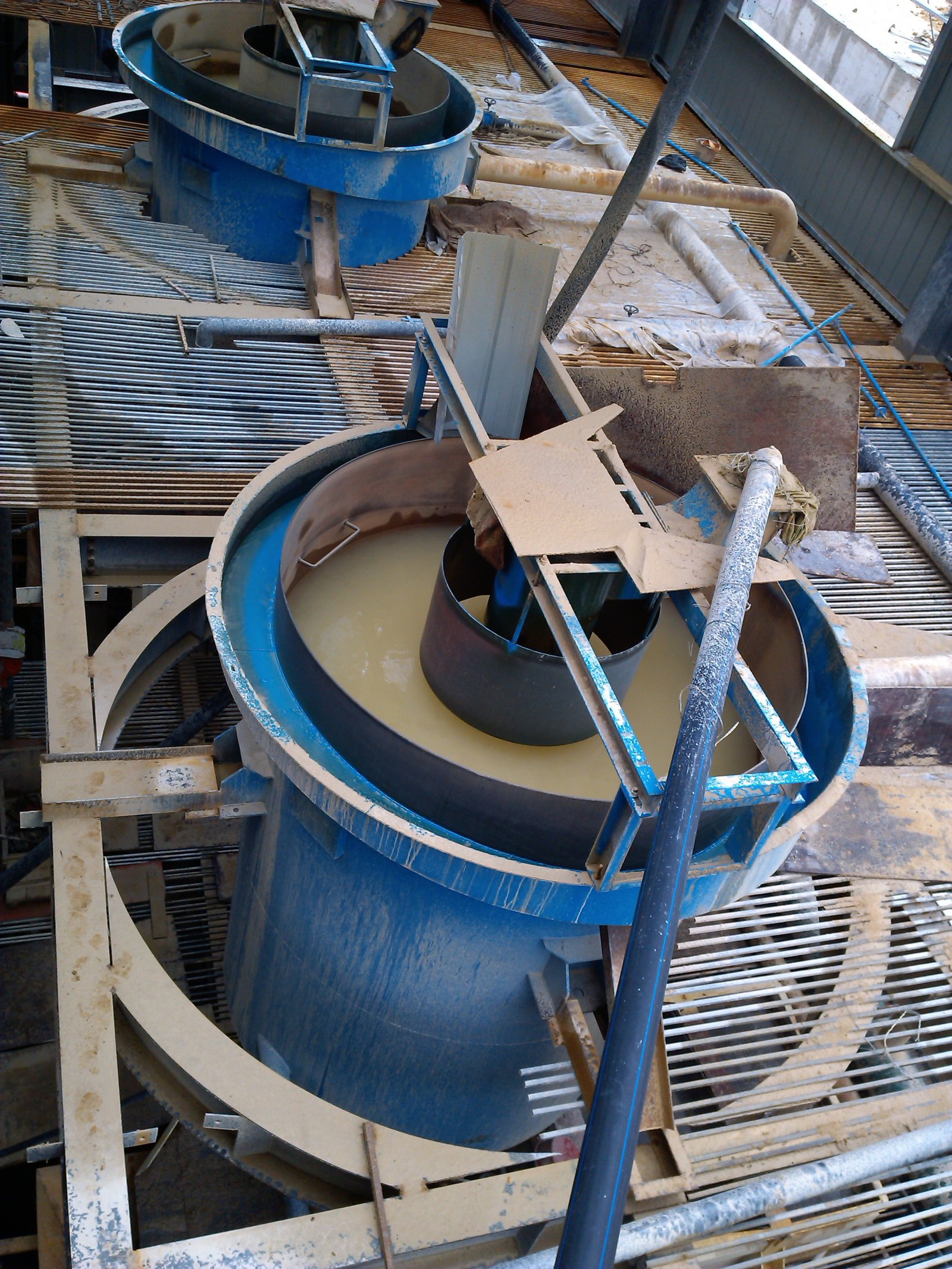

Product Name:GSS hindered settling machine

Feed particle size: <5mm

Production capacity10-40t/h

Application: Strict classification of coarse and fine particles of silica sand or other minerals, suitable for mineral separation with density differences.

Materials: Silica sand, quartz sand, potassium-sodium feldspar, etc. Equipment Introduction: Strict classification of coarse and fine particles of silica sand or other minerals, can replace fine screens for particle size control. Sorting of minerals with density differences.

Highlighted Advantages:

1. The materials inside the cylinder, under the action of rising water flow, achieve the purpose of particle size classification or density separation, resulting in high production efficiency and low energy consumption.

2. Equipped with an automatic control system, it allows for adjustments to the classification particle size by modifying the parameters of the automatic control system, making it easy to operate and control.

3. The water tank at the lower part of the cylinder is equipped with a special device. When the water supply is cut off, the water inlet hole automatically closes, preventing materials in the cylinder from clogging the hole or entering the water tank.

Working Principle Introduction: The mixture of sand and water is fed from the top through a feeding chute and moves downward within the cylinder under the action of gravity. At the lower part of the cylinder, there is a porous water spray plate. The upward water flow interacts with the descending solid particles, gradually forming a fluidized bed. Particles of different sizes will descend or ascend at the hindered settling velocity corresponding to the volumetric concentration. An electronic pressure sensor is used to measure the pressure condition of the fluidized bed and automatically adjust the opening of the discharge valve, thereby ensuring precise classification according to the required separation.
