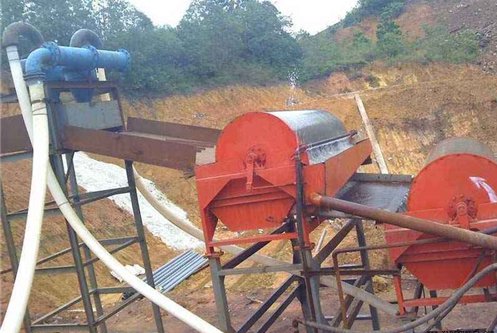

Product Name:CTY Series Permanent Magnetic Wet Pre-separator

Processing capacity:35-350t/h

Motor power:7.5-37kw

Application Areas:The CTY series permanent magnet wet pre-separator is a wet magnetic separator designed for pre-discarding tailings before magnetic grinding.

Device Introduction:The CTY series permanent magnet wet pre-separator is a wet magnetic separator designed for pre-discarding tailings before magnetic grinding.

Highlight advantages:

1．The feeding box is equipped with a material distribution device to ensure that the material entering the tank body is evenly distributed along the length direction of the roller.

2．The selected ore particle size diameter can reach12mm；

3．The magnetic material content in tailings is significantly reduced, with a lower magnetic content in the discarded tailings compared to that achieved by conventional magnetic separation equipment.1~3%；

4．The magnetic system adopts a large wrap angle design, which prolongs the separation process and improves the concentrate grade.2~4%；

5．Maintaining a certain liquid level inside the tank facilitates the recovery of magnetic materials.

Working Principle Introduction: The feeding box is equipped with a material distribution device to ensure that the material entering the tank body is evenly distributed along the length of the drum. The inner surface of the tank body and the outer surface of the magnetic drum are coated with a wear-resistant layer to enhance durability and extend service life. The diameter of the selected ore particles can reach16mm; the magnetic material content in tailings is significantly reduced, decreasing by 1-3% compared to that of conventional magnetic separation equipment. The magnetic system adopts a large wrap angle design, extending the separation process and increasing the concentrate grade by 2-4%.
