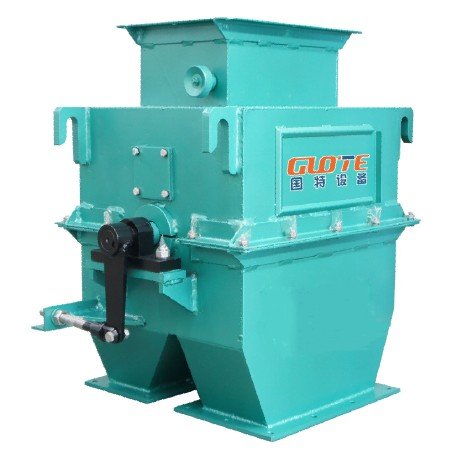

Product Name:GCX Series Permanent Magnetic Drum Separator

Magnetic Field Strength:1000-10000GS

Production capacity≤0.6-5.5T/H

Application: Suitable for removing iron contaminants from powdered or fine granular materials, purifying non-metallic ores, removing impurities in chemicals, grains, and non-magnetic metal ores, as well as dry pre-concentration of hematite and limonite.

Equipment Introduction: Used to remove iron contaminants from powdered or fine granular materials, for the purification of non-metallic minerals such as refractory materials, glass, ceramics, and abrasives, as well as for impurity removal in chemicals, grains, and non-magnetic metal ores, and dry pre-concentration of hematite and limonite.

Highlight advantages:

1. Rare earth permanent magnet materials, when used as magnetic sources, have a large magnetic penetration depth and strong suction force.

2. The new compensation magnetic pole type magnetic system features higher magnetic field intensity and greater gradient.

3. The swinging magnetic system increases the number of times the magnetic material rolls over the drum surface, resulting in better separation performance.

4. The whole machine is maintenance-free, safe and reliable to use.

5. Continuously and automatically clear debris.

6. It can be made into a two-cylinder or multi-cylinder type.

7. There are four magnetic strengths to choose from (1000-10000GS）

8.

Working Principle Introduction: The material is evenly fed into the upper feed hopper of the magnetic separator by the feeder, and then flows down onto the magnetic drum. Ferromagnetic materials are adsorbed onto the stainless steel drum shell of the magnetic drum. As the drum shell rotates, they are carried to the iron discharge zone, where they lose the magnetic attraction and fall under gravity into the iron removal outlet for collection. Non-magnetic materials directly enter the discharge outlet for output.
