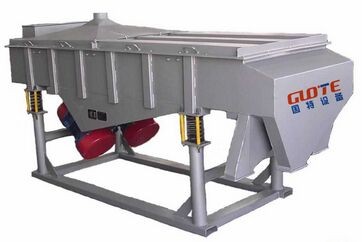

GDS Quartz Sand Vibrating Screen

A piece of equipment used for screening and grading powdered and granular materials, specifically designed for the quartz sand industry using special materials and processes.

【Product Model】: GDS
【Application Fields】:In addition to quartz sand, it is widely used in industries such as plastics, abrasives, chemicals, pharmaceuticals, building materials, grain, carbon, and fertilizers.

Low energy consumption, high output, simple structure, and easy maintenance.

Fully enclosed structure, no dust leakage, fully compliant with national environmental protection requirements.

Automatic nesting is more suitable for assembly line operations.

The equipment is made of special materials and processes, making it particularly suitable for the quartz sand industry.

Working principle

The linear vibrating screen is driven by dual vibration motors. When the two vibration motors rotate synchronously in opposite directions, the exciting forces generated by their eccentric blocks cancel each other out in the direction parallel to the motor axes, while combining into a resultant force in the direction perpendicular to the motor axes. As a result, the motion trajectory of the screen is a straight line. The two motor shafts are inclined at an angle relative to the screen surface. Under the combined action of the exciting force and the material's own gravity, the material is thrown up on the screen surface and moves forward in a jumping, linear motion, thereby achieving the purpose of screening and classifying the material.

Technical Parameters

The above technical parameters take quartz as an example.
