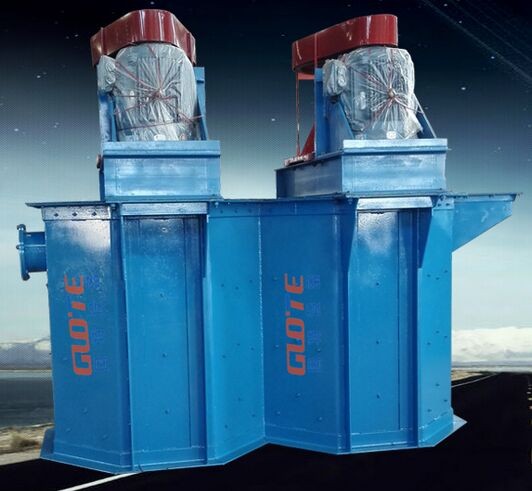

GSC Scrubber

Mainly used for the dispersion of slime and the removal of impurities from mineral surfaces.

【Particle Size】: 0-5mm
【Production Capacity】:0-30 tons/hour
【Product Model】: GSC
【Application Fields】:Mainly used for the dispersion of slime and the removal of impurities from mineral surfaces.
【Applicable Materials】:Quartz sand, potassium-sodium feldspar

High scrubbing intensityThe unique tank structure and impeller configuration increase the scrubbing intensity by approximately 30% compared to traditional scrubbers of the same specification.

Wear-resistant and corrosion-resistantThe inner lining of the tank and the impeller are both made of wear-resistant materials, offering high corrosion and wear resistance.

Working principle

The slurry enters the scrubber chamber through the feed pipe, where it undergoes intense turbulence under the powerful stirring action of the impeller. The ore particles within the slurry possess significant momentum and experience vigorous friction and collision with one another. The impurity films coating the ore particles, due to their low strength, are easily stripped from the mineral surface through friction and impact. Meanwhile, the cementing materials on the mineral surface, after being soaked in water and subjected to intense friction and collision between particles, become loose and disintegrate, thereby achieving the separation of clay from the ore particles. These film impurities and clay materials, after being disintegrated and stripped into the slurry, can be separated from the slurry through subsequent desliming. In actual production processes, different reagents are added based on the specific conditions of the minerals.

Technical Parameters

The above technical parameters take quartz as an example.
