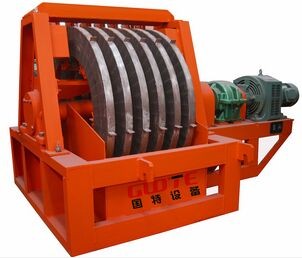

The GTCW tailings recovery machine is widely used in the efficient recovery and development of magnetic materials from waste slurry discharged by beneficiation plants in industries such as metallurgy, mining, non-ferrous metals, gold, building materials, electric power, and coal, as well as coal washing plants, steel plants (steel slag), and sintering plants.
【Application Fields】:Disc-type tailings recovery machines are widely used in various fields, such as metallurgy, mining, ferrous metals, gold, building materials, power generation, and coal, to effectively recover magnetic materials.
The host disk system consists of a set of magnetic rings embedded with magnets. The magnetic system can directly act on magnetic materials with high magnetic field strength, achieving a recovery rate of 85% to 95%.
| Model | Disc diameter (mm) | Number of disks | Working Area (m²) | Magnetic Field Strength (GS) | Ore concentration | Unloading water pressure (MPa) | Electric Power (KW) | Selected particle size (mm) | Weight (t) |
| GTWK-120 | 1200 | 6-12 | 20.3 | 1700-4200 | 8-20 | 0.15 | 3 | 0.07-2 | 3.2 |
| GTWK-150 | 1500 | 6-12 | 32.7 | 1700-4200 | 8-20 | 0.15 | 4 | 0.07-2 | 4 |
| GTWK-170 | 1700 | 6-12 | 40.8 | 1700-4200 | 8-20 | 0.15 | 5.5 | 0.07-2 | 5.5 |
The above technical parameters take quartz as an example.
