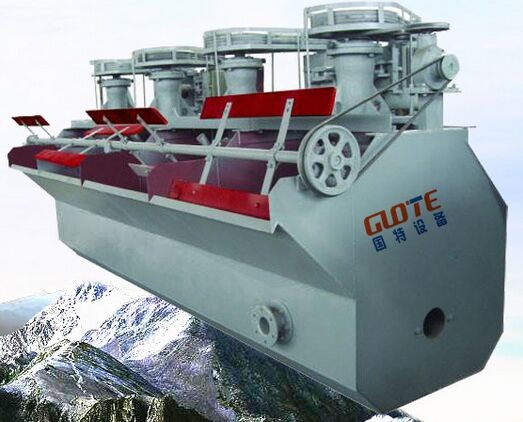

GJF Flotation Machine

A self-priming slurry and self-priming air mining flotation machine.

【Production Capacity】:Volume: 0.37～20 m³
【Product Model】: GJF
【Application Fields】:This flotation machine is suitable for the separation of non-metallic ores such as feldspar and quartz, and can also be used for the flotation of ferrous and non-ferrous metals.
【Applicable Materials】:Potassium feldspar, quartz, lead-zinc ore, gold ore, iron ore, molybdenum ore, bauxite, copper ore, etc.

Large air intake, low power consumption.

Mechanical agitation, self-priming, self-suction of slurry.

The impeller features backward-inclined upper and lower blades. The upper blades generate an upward circulation of the slurry, while the lower blades produce a downward circulation of the slurry.

Each tank integrates the triple functions of air suction, slurry suction, and flotation, forming an independent flotation circuit without the need for any auxiliary equipment. It is horizontally configured for ease of process design.
