Applicable Industries:
Food, Pharmaceuticals, Chemicals
Application:
Mainly used in magnetic separators that form magnetic racks, it can effectively remove magnetic metal impurities from loose or flowing materials, improving product quality and protecting downstream equipment.
;Product Description:
·Using ferrite permanent magnets and various grades of rare earth permanent magnets to meet the needs of different customers, with a peak magnetic field intensity greater than 12,000 GS.
· The uniquely optimized magnetic circuit design creates a high-gradient magnetic field, enhancing pulling force and improving sorting efficiency. It can remove any strongly magnetic and weakly magnetic impurities, such as adsorbed rust and weakly magnetized stainless steel.
·Due to the high-intensity gradient magnetic field, the capture is thorough and the gripping force is strong, resulting in more complete impurity removal.
· The standard operating temperature for regular products is **80 degrees Celsius**. For customers with special requirements, we can provide **high-temperature products with an operating temperature of 250 degrees Celsius**.
· All Mayer magnetic rods are made of 304 or 316L seamless stainless steel tubes, polished to fully comply with HACCP, GMP, and FDA standards.
·Diverse end designs—flat ends, screw holes, studs, etc.; for materials with high abrasiveness, a sleeve-type magnetic rod can be selected. The sleeve enhances the wear resistance of the magnetic rod, extending its service life several times over. The sleeve and magnetic rod are secured by magnetic force, making installation and removal more convenient. With the external sleeve, magnetic impurities can be easily removed when the internal magnetic rod is taken out.

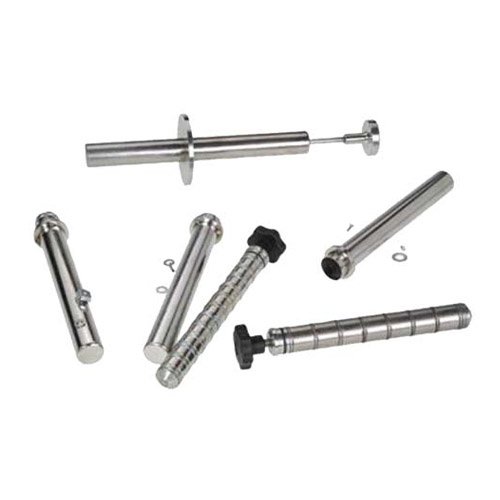

Magnetic rod specifications:The end of the magnetic rod is a flat-end plug: the end of the magnetic rod is a threaded hole plug M6 M8 M10
