Cutting line type

Silicon carbide wire

2

The diameter of the steel wire

0.4-0.5mm

3

Steel wire **tension**

150N

4

The amount of wire stored on the wire storage drum.

10000m

5

cutting headZFeed speed

0.5-2mm/min

6

DeviceZThe itinerary is

660mm

7

Steel wire cutting **linear speed**

15m/s

8

Equipment **Processing Capability**

1200*1200*500mm

9

Main roller line spacing

158mm

10

Cable network wiring quantity

95m

11

Cooling method

Circulating water cooling

12

Water pump

Self-priming centrifugal water pump

13

Movable water tank

Capacity10000L, high300mm

14

Equipment rated power

60KW

15

Device Power Supply

380V/50HZ

16

Compressed air consumption

60m³/h

17

Gas source pressure

≥0.6Mpa

18

Cooling water consumption

300L/min

19

Cooling water pressure

2bar

20

Device dimensions

5600*2900*3400mm

21

Equipment weight

18T

22

The approximate amount of thread used is

1350~1500m

1.The refined overall design facilitates easy operation and maintenance.

2.Exquisite appearance design with excellent device quality.

3.The equipment processing is efficient, saving time, money, and energy.

4.The size error of the cut silicon ingot is small, and the surface roughness is good.

5.The control system is flexible. All process parameters can be flexibly set by the user according to needs, making it convenient for users to adjust processes based on on-site requirements, enabling production with high efficiency and low cost.

6.The cooling water adopts a distributed structure with two layers of spray (upper and lower) and adjustable branch flow rates.

7.The machine hardware has high reliability. It is controlled using Siemens SIMOTION series programmable controllers, servo drive systems, and bus communication systems, providing a convenient operation platform with fast computing speed and reliable data transmission.；

8.The steel wire tension is controlled using pneumatic servo control, ensuring stable wire operation and a low breakage rate.

9.It is equipped with wire break alarm, wire jump alarm, and wire bow alarm functions to ensure personnel and machine safety and improve the reliability of equipment operation.

10.Advanced take-up and pay-off design ensures low wire breakage rate and stable amplitude.

11.The advanced spindle design ensures precise accuracy, flexible and convenient adjustment of slot spacing, and easy slot change.

12.A portable water tank equipped with liquid level alarm and automatic water refill functions, offering convenience, safety, and reliability.

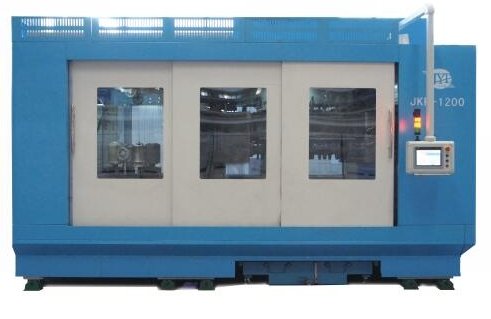

13.The operating system features a user-friendly interface, clear graphics, simple operation, safety and reliability, as well as real-time recording and data storage capabilities. The JKF-1200 squaring machine is a dedicated G7 diamond wire squaring machine, featuring a gantry structure that ensures stability and excellent dimensional accuracy.
