【Brief Introduction】The WF-Pulse Dust Removal Crushing Unit is suitable for industries such as pharmaceuticals, chemicals, and food (including white sugar, granulated sugar, table salt, rice, corn, starch, oats, flour, soybeans, peas, lentils, mung beans, spices, flavors and fragrances, sweeteners, dried fruits, nuts, potato chips, bread crumbs, cocoa powder, potato flour, coffee, milk powder, onions, dehydrated vegetables, lotus seeds, glucose, oat husks, nut shells, ginger, Sichuan peppercorns, chili peppers, black pepper, lettuce, soybeans, star anise, cinnamon, etc.) in the powder industry. It is a crushing equipment that integrates crushing, dust collection, and continuous discharge.

Main uses:

WF-Pulse Dust Removal Grinding UnitSuitable for industries such as pharmaceuticals, chemicals, food, magnetic materials, and powders, it integrates crushing, dust collection, and continuous discharge into one system.GeneralCrushing equipment.

Working principle:

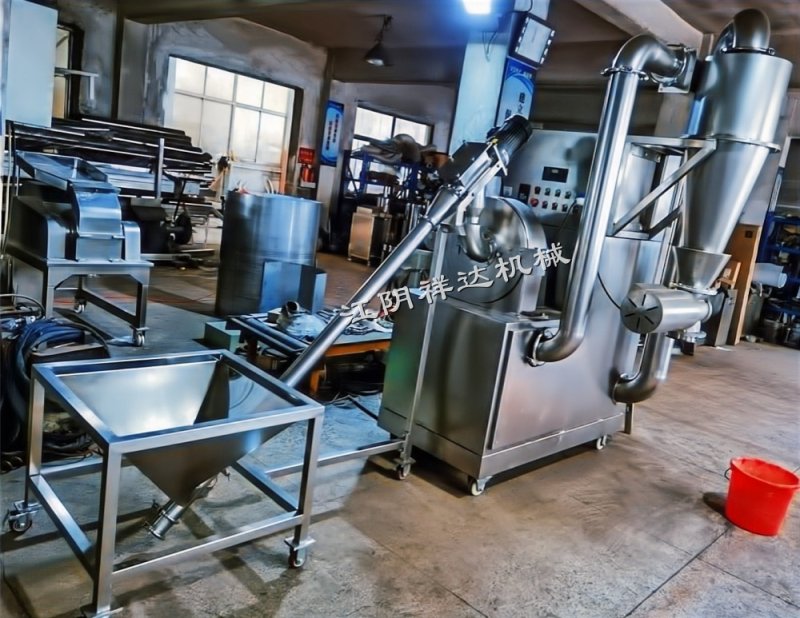

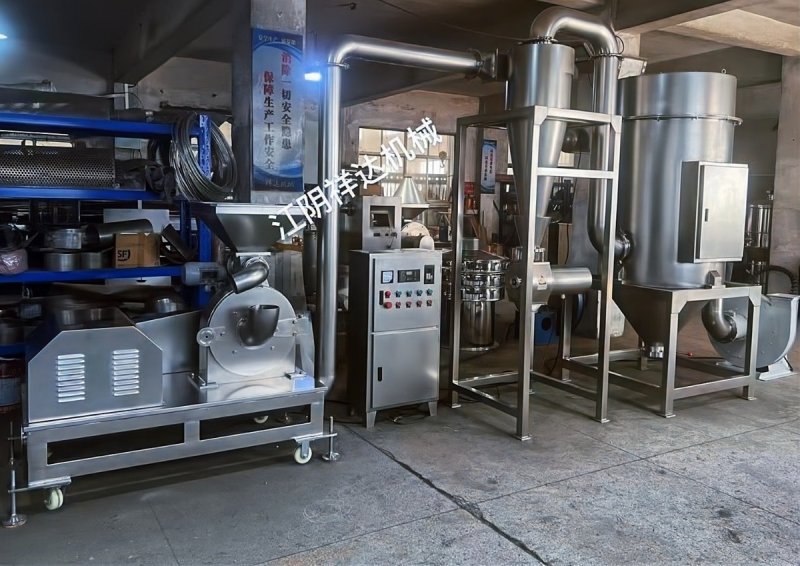

WF-Pulse Dust Removal Crushing UnitIt is composed of several main parts, including a grinder, a cyclone separator, a pulse dust collector, and a fan. This machine utilizes the relative motion between the movable toothed disc and the fixed toothed disc to crush the material through impact, friction, and mutual collisions between the materials. The crushed material is then guided by the centrifugal force of the rotating mechanism and the suction of the fan into the cyclone separator for discharge. Subsequently, through the airlock, the dust enters the pulse dust collector, where it is filtered and recovered via filter cartridges. The fineness of the crushed material can be adjusted using a screen mesh. The entire machine is designed according to...Designed according to GMP standards, made entirely of stainless steel materials, with no dust emission during the production process.
