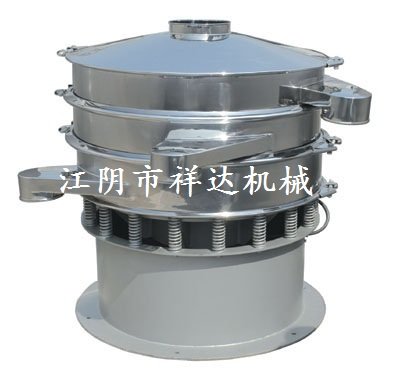

Shenzhen High-Efficiency Sieving MachineIt is suitable for introducing advanced foreign technologies and, in combination with "GMP" requirements, has been meticulously designed and improved. It is widely applicable to industries such as pharmaceuticals, chemicals, food, metallurgy, and electronics, making it an ideal equipment for industrial raw material grading and screening.

Shenzhen High-Efficiency Sieving MachineIt is composed of a vertical vibration motor as an integrated oscillation system, with eccentric excitation weights at both the upper and lower ends of the motor's main shaft. The upper and lower eccentric excitation weights are fixed to the motor's main shaft. For materials that are difficult to screen, the weight of the eccentric weights can be appropriately increased. This achieves the characteristics of screening different materials. At this point, the material is not only subjected to a significant centrifugal force but also to a substantial vertical force, causing the material to undergo compound motion and resulting in efficient screening performance.
Shenzhen High-Efficiency Sieving MachineFunction and Principle: The basic principle of the sieve and filter machine is that the heavy hammers (unbalanced weights) installed at the upper and lower ends of the motor convert the motor's motion into a three-dimensional movement involving horizontal, vertical, and inclined directions, which is then transmitted to the screen surface. Changing the phase angle of the upper and lower heavy hammers of the motor can alter the direction of the material's movement.

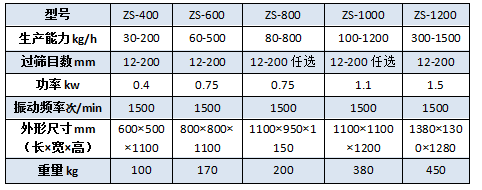

Shenzhen High-Efficiency Sieving MachineTechnical Parameters
